SUMMIT MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$17,495 USD
Manufacturer:
SUMMIT
Model:
EVS-550B
Weight:
990 LBS

Specifications

Condition:
new
Stock number:
061749
Electrics:
220/3/60
Table size:
11" X 52" X 3-1/8"
Spindle taper:
#40
Spindle travel:
5"
Overarm rotation:
360 DEG
Table cross feed:
16"
Speed range (rpm):
0-3650
Optional equipment:
PRICE ON REQUEST
Overarm adjustment:
24"
Spindle feed range:
0015/.003/.006
Motor size (2 speeds):
5 HP
Spindle nose to table:
2" - 22"
Table longitudinal feed:
32"
Vertical travel of knee:
22"
Maximum workpiece weight:
990 LBS
Number of spindle speeds:
INF. VARIABLE
Head movement side to side:
+/- 90 DEG
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

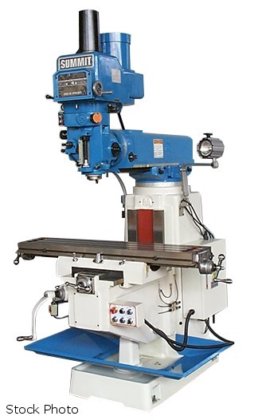

SUMMIT (NEW) M0DEL EVS-550B MILLING MACHINE
TABLE SIZE .............. 11" X 52" X 3-1/8"
TABLE LONGITUDINAL FEED ........... 32"
TABLE CROSS FEED .................. 16"
MAXIMUM WORKPIECE WEIGHT .......... 990 LBS
OVERARM ROTATION .................. 360 DEG
OVERARM ADJUSTMENT ................ 24"
SPINDLE NOSE TO TABLE ............. 2" - 22"
MOTOR SIZE (2 SPEEDS) ............. 5 HP
NUMBER OF SPINDLE SPEEDS ..... INF. VARIABLE
SPEED RANGE (RPM) ................. 0-3650
SPINDLE TAPER ..................... #40
SPINDLE TRAVEL .................... 5"
SPINDLE FEED RANGE ......... .0015/.003/.006
HEAD MOVEMENT SIDE TO SIDE ....... +/- 90 DEG
VERTICAL TRAVEL OF KNEE ........... 22"
ELECTRICS ......................... 220/3/60
STANDARD FEATURES:
HEAVY CAST IRON CONSTRUCTION
HEAVY BOX SADDLE
HUGE BOX WAYS ON KNEE AND COLUMN
TURCITE-B LINED GUIDEWAYS
DOUBLE TABLE LOCKS
WIPERS FOR SADDLE AND COLUMN
RACK AND PINION RAM MOVEMENT
BUILT IN COOLANT SYSTEM
ONE SHOT LUBRICATION
ADJUSTABLE CROSS SLIDE STOPS
HALOGEN WORK LIGHT
FULL ELECTRICS WITH LOW VOLTAGE CONTROLS
POWER DRAW BAR
POWER KNEE
COGGED DRIVE BELT
INVERTER DUTY, HIGH ENERGY/EFFICIENCY MOTOR
YASKAWA COMPACT AC INVERTER DRIVE
IMMEDIATE RESPONSE SPEED CONTROL
ELECTRONIC INVERTER CONTROLLED BRAKING
INCLUDED ACCESSORIES:
OIL GUN
CLAMPING KIT
SCREWDRIVERS
ANCHOR BOLTS
OPEN END, BOX END, AND HEX KEY WRENCH SETS
SIX R-8 COLLETS
OPTIONAL EQUIPMENT ........ PRICE ON REQUEST
DIGITAL READOUT .............. POR
X-AXIS POWER FEED ................ POR
Y-AXIS POWER FEED ................ POR
