SUMMIT MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$10,995 USD
Manufacturer:
Summit
Model:
VS-350B KNEE MILL

Specifications

Condition:
new
Stock number:
061728
Table size:
10" X 50" X 3-1/8"
Spindle taper:
R-8
Spindle speeds:
INF VARIABLE
Spindle travel:
5"
Spindle speeds 2:
60 - 4200 RPM
Options available:
PRICE ON REQUEST
Overarm adjustment:
22"
Spindle feed range:
0015/.003/.006 IPR
Table feed - cross:
16"
Rotation of overarm:
360 DEGREES
Motor size - 2 speed:
3 HP
Spindle nose to table:
2.5" - 18.5"
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

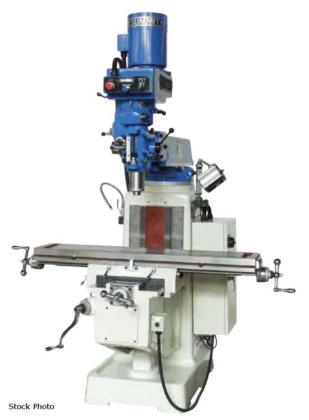

SUMMIT (NEW) MODEL VS-350B VERTICAL MILL
HEADSTOCK
MOTOR SIZE - 2 SPEED ......... 3 HP
SPINDLE SPEEDS ............... INF VARIABLE
SPINDLE SPEEDS ............... 60 - 4200 RPM
SPINDLE TAPER ................ R-8
SPINDLE TRAVEL ............... 5"
SPINDLE FEED RANGE ...... .0015/.003/.006 IPR
HEAD MOVEMENT SIDE TO SIDE ... +/- 90 DEGREES
HEAD MOVEMENT FRONT TO BACK .. +/- 45 DEGREES
TABLE
TABLE SIZE ............... 10" X 50" X 3-1/8"
TABLE FEED - LONGITUDINAL .... 36"
TABLE FEED - CROSS ........... 16"
TABLE TRAVEL - KNEE VERTICAL . 18.5"
MAXIMUM WEIGHT OF WORKPIECE .. 850 LBS
OVERARM
ROTATION OF OVERARM .......... 360 DEGREES
OVERARM ADJUSTMENT ........... 22"
SPINDLE NOSE TO TABLE ........ 2.5" - 18.5"
FEATURES:
HEAVY CAST IRON CONSTRUCTION
HEAVY BOX SADDLE
HUGE BOX TYPE WAYS ON KNEE
DOUBLE TABLE LOCKS
WIPERS FOR SADDLE AND COLUMN
RACK AND PINION RAM MOVEMENT
TURCITE B LINED GUIDEWAYS
KNUCKLE JOINT HEAD MOUNT
BUILT-IN COOLANT SYSTEM
ONE-SHOT LUBRICATION
ADJUSTABLE CROSS SLIDE STOPS
HALOGEN WORK LIGHT
FULL ELECTRICS WITH LOW VOLTAGE CONTROLS
ACCESSORIES
OIL GUN
CLAMPING KIT
SCREW DRIVERS
ANCHOR BOLTS
DRAW BAR
OPEN END, BOX END AND HEX KEY WRENCH SETS
SIX R8 COLLETS
OPTIONS AVAILABLE .......... PRICE ON REQUEST
DIGITAL READOUTS ............ POR
X AXIS POWER FEED ........... POR
Y AXIS POWER FEED ........... POR
