ACCORD MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$9,750 USD
Manufacturer:
Accord
Model:
ACM-3AC

Specifications

Condition:
new
Stock number:
061726
Voltage:
220V/3PH/1PH
Main motor:
3 HP
Table size:
10" X 54"
Spindle rpm:
50-5000 RPM
Quill travel:
5"
Spindle speed:
INF. VARI.
Spindle taper:
R-8 OR 30T
Quill diameter:
3-3/8"
Over ram travel:
12-1/4"
T-slot number, size:
3, 5/8"
Cross travel (y axis):
16-1/2"
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

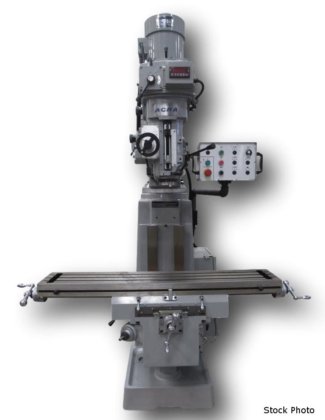

ACCORD (NEW) MODEL ACM-3AC PRECISION MILLING
MACHINE
TABLE SIZE ..................... 10" X 54"
LONGITUDINAL TRAVEL (X AXIS) ... 39-1/2"
CROSS TRAVEL (Y AXIS) .......... 16-1/2"
VERTICAL KNEE TRAVEL (Z AXIS) .. 18"
OVER RAM TRAVEL ................ 12-1/4"
T-SLOT NUMBER, SIZE ............ 3, 5/8"
SPINDLE TAPER .................. R-8 OR 30T
SPINDLE SPEED .................. INF. VARI.
SPINDLE RPM .................... 50-5000 RPM
QUILL DIAMETER ................. 3-3/8"
QUILL TRAVEL ................... 5"
MAIN MOTOR ..................... 3 HP
VOLTAGE ........................ 220V/3PH/1PH
FEATURES:
CLASS 7 ANGULAR CONTACT BEARINGS
CERTIFIED MEEHANITE CASTING
RAM LOCKING SYSTEM
HAND SCRAPED TURRET-COLUMN WAYS
DUST COVER FOR KNEE AND CROSSFEED WAYS
SQUARE Y & Z WAYS
PRECISION HARDENED & GROUND TABLE W/TURCITE
DOUBLE WALL COLUMN & KNEE
BUILT-IN COOLANT TANK IN BASE
