Top Seller
ACCORD MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$13,000 USD
Manufacturer:
Accord
Model:
ACM-5V MILLING MACH

Specifications

Condition:
new
Stock number:
061722
Phase:
3 PHASE
Voltage:
220 OR 440 V
Main motor:
5 HP
Table size:
14.5" X 58"
Spindle rpm:
50-3750 RPM
Quill travel:
5"
Spindle taper:
40
Quill diameter:
4"
Over ram travel:
12.25"
Optional equipment:
PRICE ON REQUEST
T-slot number, size:
3, 5/8"
Cross travel (y axis):
16"
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

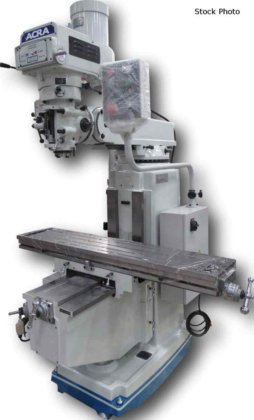

ACCORD (NEW) MODEL ACM-5V PRECISION MILLING
MACHINE
TABLE SIZE ..................... 14.5" X 58"
LONGITUDINAL TRAVEL (X AXIS) ... 39.5"
CROSS TRAVEL (Y AXIS) .......... 16"
VERTICAL KNEE TRAVEL (Z AXIS) .. 18"
OVER RAM TRAVEL ................ 12.25"
T-SLOT NUMBER, SIZE ............ 3, 5/8"
SPINDLE TAPER .................. 40
SPINDLE RPM .................... 50-3750 RPM
QUILL DIAMETER ................. 4"
QUILL TRAVEL ................... 5"
MAIN MOTOR ..................... 5 HP
VOLTAGE ........................ 220 OR 440 V
PHASE .......................... 3 PHASE
FEATURES:
2-SPEED MOTOR
CLASS 7 ANGULAR CONTACT BEARINGS
CERTIFIED MEEHANITE CASTING
BUILT IN POWER KNEE
AUTO LUBE SYSTEM
RAM LOCKING SYSTEM
PENDANT CONTROL PLANEL
#40 NST STD.
SQUARE Y & Z WAYS
DUST COVER FOR KNEE AND CROSSFEED WAYS
PRECISION HARDENED & GROUND TABLE W/TURCITE
DOUBLE WALL COLUMN & KNEE
BUILT-IN COOLANT TANK IN BASE
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
TABLE POWER FEEDS .......... POR
DIGITAL READOUT SYSTEMS .... POR
MACHINE TOOL VISE .......... POR
POWER DRAW BAR ............. POR
BASE SPLASH PAN ............ POR
COOLANT PUMP ............... POR
SPRAY MIST SYSTEM .......... POR
