BIRMINGHAM MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$6,000 USD
Manufacturer:
Birmingham
Model:
BPV-1054-C
Capacity:
800 LBS

Specifications

Condition:
new
Stock number:
061638
Prewired:
220 V, 3 PHASE
Hand only:
38"
Ram travel:
18"
Table size:
10" X 54"
Cross travel:
18"
Quill travel:
5"
Spindle motor:
3 HP, 3 PHASE
Spindle taper:
R8
Quill diameter:
3-3/8"
Vertical travel:
18"
With power feed:
34.25"
Head tilting f/b:
45/45 DEGREES
Head swivel rh/lh:
90/90 DEGREES
Quill feed speeds:
0.0015", 0.003"
Ram turret swivel:
360 DEGREES
Table t-slot size:
5/8" X 3
Spindle speeds type:
VARIABLE SPEED
Table load capacity:
800 LBS
Spindle speeds (rpm):
60-4300
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

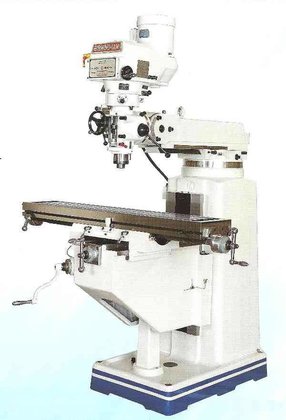

BIRMINGHAM (NEW) MODEL BPV-1054-C VARIABLE
SPEED MILLING MACHINE W/LEADSCREWS ON X & Y
TABLE LOAD CAPACITY ......... 800 LBS
TABLE SIZE .................. 10" X 54"
LONGITUDINAL TRAVEL
HAND ONLY ................. 38"
WITH POWER FEED ........... 34.25"
TABLE T-SLOT SIZE ........... 5/8" X 3
CROSS TRAVEL ................ 18"
VERTICAL TRAVEL ............. 18"
RAM TRAVEL .................. 18"
QUILL FEED SPEEDS ........... 0.0015", 0.003"
........................... 0.006"/REV
QUILL TRAVEL ................ 5"
SPINDLE TAPER ............... R8
QUILL DIAMETER .............. 3-3/8"
HEAD SWIVEL RH/LH ........... 90/90 DEGREES
HEAD TILTING F/B ............ 45/45 DEGREES
RAM TURRET SWIVEL ........... 360 DEGREES
SPINDLE MOTOR ............... 3 HP, 3 PHASE
SPINDLE SPEEDS TYPE ......... VARIABLE SPEED
SPINDLE SPEEDS (RPM) ........ 60-4300
PREWIRED .................... 220 V, 3 PHASE
MAXIMUM MINIMUM
D ..... 18.75" ..... 2"
E ..... 12" ........ 0"
F ..... 20" ........ 6.75"
G ..... 25" ........ 9"
STANDARD FEATURES:
- MEEHANITE CASTING
- HARDENED AND GROUND WORK TABLE
- HARDENED & GROUND X, Y, AXIS SLIDE WAYS
- TURCITE-B ON WAYS FOR SMOOTH MOVEMENT
- CHROMED QUILL-HONED HEAD
- GROUND WORK TABLE TEE SLOTS
- CLASS 7 SPINDLE BEARINGS
- ONE SHOT LUBE
- TOOLBOX
- DRAW BAR/SERVICE WRENCH
- COOLANT SUMP IN COLUMN
- COOLANT DRAIN IN BASE
- FRONT AND REAR CHIP GUARD
- DOUBLE KNEE LOCKS-RACHET STYLE
- CHROMED TURN-IN-THE HAND HANDLES
- OPERATION MANUAL/PARTS LIST
