CLAUSING MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$29,110 USD
Manufacturer:
Clausing
Model:
3VS08CNCAR 2-AXIS VT

Specifications

Condition:
new
Stock number:
061597
Ram:
20.04"
Knee:
15.55"
Y cross:
15.55"
Knee ways:
SQUARE
Low range:
85-780
High range:
515-4350
Knee width:
11.42"
Ram length:
41.73"
Table load:
665 LBS
Table size:
10" X 54"
Table ways:
DOVETAIL
Column ways:
DOVETAIL
T-slot width:
1.1"
Quill diameter:
3.38"
Spindle travel:
5"
X longitudinal:
39.56"
Motor hp variable:
3 HP
Number of t-slots:
3
Main spindle taper:
R-8 OR ISO30
Column bearing length:
17.91"
Column turret diameter:
14.96"
T-slot center distance:
2.48"
Variable spindle speed:
75-4350 RPM
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

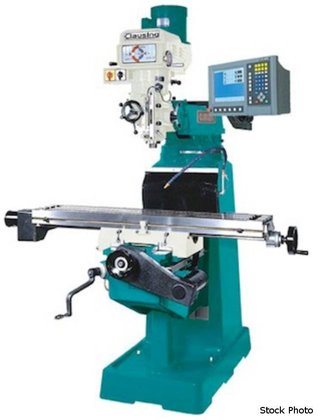

CLAUSING (NEW) 3VS08CNCAR 2-AXIS VERTICAL
MILL
TABLE & WAYS
TABLE SIZE .................. 10" X 54"
NUMBER OF T-SLOTS ........... 3
T-SLOT WIDTH ................ 1.1"
T-SLOT CENTER DISTANCE ...... 2.48"
TABLE WAYS .................. DOVETAIL
KNEE WAYS ................... SQUARE
COLUMN WAYS ................. DOVETAIL
TRAVEL
X LONGITUDINAL .............. 39.56"
Y CROSS ..................... 15.55"
KNEE ........................ 15.55"
RAM ......................... 20.04"
MOTORS & SPINDLE
MOTOR HP VARIABLE ........... 3 HP
VARIABLE SPINDLE SPEED ...... 75-4350 RPM
LOW RANGE ................. 85-780
HIGH RANGE ................ 515-4350
MAIN SPINDLE TAPER .......... R-8 OR ISO30
SPINDLE TRAVEL .............. 5"
QUILL FEED ("/ REV.) . 0.0015 0.0031 0.006
QUILL DIAMETER .............. 3.38"
CONSTRUCTION
COLUMN TURRET DIAMETER ...... 14.96"
KNEE WIDTH .................. 11.42"
COLUMN BEARING LENGTH ....... 17.91"
SADDLE/TABLE BEARING LENGTH . 20.28"
RAM/TURRET BEARING LENGTH ... 17.32"
RAM LENGTH .................. 41.73"
TABLE LOAD .................. 665 LBS
STANDARD FEATURES:
ACU-RITE, FAGOR AND NEWALL CONTROL OPTIONS
MEEHANITE CASTINGS
HARDENED & GROUND X, Y, AND KNEE WAYS
TURCITE B APPLIED TO X AND Y WAYS
GROUND T-SLOTS PROVIDE REFERENCE EDGE
ABEC 7/CP4 SPINDLE BEARINGS
CHROMED AND GROUND QUILL
COOLANT SYSTEM WITH PUMP, SWITCH, AND
FLEXIBLE SEGMENTED COOLANT NOZZLE
SPINDLE BRAKE (HAND OPERATED)
ONE-SHOT LUBRICATION
HALOGEN WORK LIGHT
TOOL KIT, TEST AND ACCURACY CHART
OPERATIONS MANUAL/PARTS LIST
