Top Seller
BIRMINGHAM MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$1,395 USD
Manufacturer:
Birmingham
Model:
RF-31
Capacity:
1-1/4"

Specifications

Condition:
new
Stock number:
061574
Swing:
16-3/8"
Head swivel:
360 DEGREE
Spindle taper:
R-8
Quill diameter:
3"
Column diameter:
4-1/2"
Cross travel (in):
6 1/4"
Drilling capacity:
1-1/4"
End mill capacity:
3/4"
Face mill capacity:
4"
Deluxe cabinet stand:
$ POR
Max table travel (in):
18 1/8"
Number of spindle speeds:
12
Working surface of table:
8 X 28 3/4"
Max dist spindle to table:
18"
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

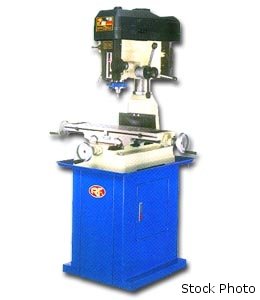

(NEW) BIRMINGHAM MODEL RF-31 MILL/DRILL
DRILLING CAPACITY................ 1-1/4"
FACE MILL CAPACITY............... 4"
END MILL CAPACITY................ 3/4"
SWING............................ 16-3/8"
MAX DIST SPINDLE TO TABLE........ 18"
SPINDLE TAPER.................... R-8
QUILL DIAMETER................... 3"
HEAD SWIVEL...................... 360 DEGREE
COLUMN DIAMETER.................. 4-1/2"
NUMBER OF SPINDLE SPEEDS......... 12
RANGE OF SPINDLE SPEEDS (RPM).... 120 - 2500
MAX TABLE TRAVEL (IN)............ 18 1/8"
CROSS TRAVEL (IN)................ 6 1/4"
WORKING SURFACE OF TABLE......... 8 X 28 3/4"
STANDARD EQUIPMENT:
3" CARBIDE FACEMILL; 3 1/2" ANGLE VISE
1/2" DRILL CHUCK; CHUCK ARBOR; DRAW BAR;
2 HP, 1PH 110 VOLT MOTOR
OPTIONAL ACCESSORIES
DELUXE CABINET STAND ............. $ POR
