BIRMINGHAM MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$6,110 USD
Manufacturer:
Birmingham
Model:
BPS-1054-C
Capacity:
800 LBS

Specifications

Condition:
new
Stock number:
060892
Hand only:
38"
Ram travel:
18"
Table size:
10" x 54"
Quill taper:
R-8
Cross travel:
18"
Quill travel:
5"
Quill diameter:
3-3/8"
Vertical travel:
18"
With power feed:
34-1/4"
Head tilting f/b:
45/45 DEGREE
Head swivel rh/lh:
90/90 DEGREE
Ram turret swivel:
360 DEGREE
Spindle speed type:
STEP PULLEY
Motor and electrics:
3 HP 3 PHASE
Table load capacity:
800 LBS
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

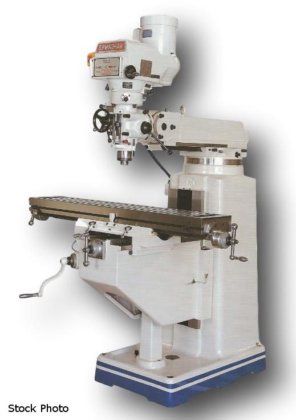

BIRMINGHAM (NEW) MODEL BPS-1054-C MILLING
MACHINE
TABLE SIZE ................ 10" x 54"
TABLE LOAD CAPACITY ....... 800 LBS
TABLE T-SLOTS - SIZE & # .. 5/8" X 3
LONGITUDINAL TRAVEL
- HAND ONLY ............... 38"
- WITH POWER FEED ......... 34-1/4"
CROSS TRAVEL .............. 18"
VERTICAL TRAVEL ........... 18"
RAM TRAVEL ................ 18"
QUILL FEED SPEEDS . 0.0015" 0.003" 0.006"/REV
QUILL TRAVEL .............. 5"
QUILL TAPER ............... R-8
QUILL DIAMETER ............ 3-3/8"
SPINDLE SPEED TYPE ........ STEP PULLEY
SPINDLE SPEEDS-16 SPEEDS .. 90 - 5600 RPM
HEAD SWIVEL RH/LH ......... 90/90 DEGREE
HEAD TILTING F/B .......... 45/45 DEGREE
RAM TURRET SWIVEL ......... 360 DEGREE
MOTOR AND ELECTRICS ....... 3 HP 3 PHASE
STANDARD EQUIPMENT:
- TOOL BOX
- FRONT CHIP GUARD
- REAR CHIP GUARD
- DRAW BAR
- ONE SHOT LUBRICATION
STANDARD FEATURES:
- HIGH-QUALITY TAIWAN-MADE MILL HEAD
- HIGH-PRECISION CHINA-MADE MILL BODY
- SATIN CHROME FINISHED DIALS
- BUILT-IN COOLANT COLUMN BASE
- DOUBLE KNEE AND TABLE LOCKS
- RAM EQUIPPED WITH DOUBLE LOCKS
- LARGE DIAMETER QUILL IS CHROMED
- ONE-PIECE PINION AND SHAFT
- SPINDLE HEAD IS INTERNALLY COOLED
- HARDENED AND GROUND WAYS
- HIGH-PRECISION CLASS 7 SPINDLE BEARINGS
- 3-STAGE POWER DOWNFEED WITH AUTO STOP
