BIRMINGHAM MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$5,200 USD
Manufacturer:
Birmingham
Model:
BPS-1649-C KNEE
Capacity:
600 LBS

Specifications

Condition:
new
Stock number:
061446
Options:
PRICE ON REQUEST
Hand only:
35-1/2"
Ram travel:
12"
Table size:
9" X 49"
Cross travel:
13-1/4"
Quill travel:
5"
Spindle motor:
3 HP, 3 PHASE
Spindle taper:
R8
Quill diameter:
3-3/8"
Vertical travel:
16"
With power feed:
33"
Head swivel rh/lh:
90 DEG / 90 DEG
Quill feed speeds:
0.0015"
Ram turret swivel:
360 DEGREES
Table t-slot size:
5/8" X 3
Spindle speed type:
STEP PULLEY
Table load capacity:
600 LBS
Spindle nose to table:
2" - 18"
Head tilting front/back:
45 DEG / 45 DEG
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

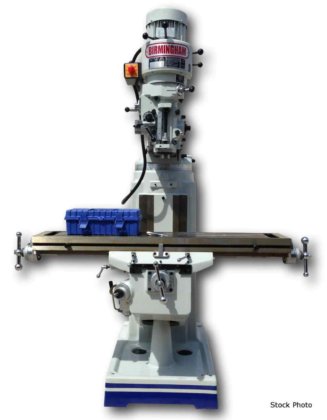

BIRMINGHAM (NEW) MODEL BPS-1649-C KNEE MILL
TABLE SIZE .................. 9" X 49"
TABLE LOAD CAPACITY ......... 600 LBS
TABLE T-SLOT SIZE ........... 5/8" X 3
LONGITUDINAL TRAVEL
- HAND ONLY ................. 35-1/2"
- WITH POWER FEED ........... 33"
CROSS TRAVEL ................ 13-1/4"
VERTICAL TRAVEL ............. 16"
RAM TRAVEL .................. 12"
QUILL FEED SPEEDS ........... 0.0015"
............... 0.003" .... 0.006"/REV
QUILL TRAVEL ................ 5"
SPINDLE TAPER ............... R8
QUILL DIAMETER .............. 3-3/8"
HEAD SWIVEL RH/LH ........... 90 DEG / 90 DEG
HEAD TILTING FRONT/BACK ..... 45 DEG / 45 DEG
RAM TURRET SWIVEL ........... 360 DEGREES
SPINDLE MOTOR ............... 3 HP, 3 PHASE
SPINDLE SPEED TYPE .......... STEP PULLEY
SPINDLE SPEEDS (16 SPEEDS) .. 90-5600 RPM
SPINDLE SPEEDS (8 SPEEDS) ... 90-2800 RPM
SPINDLE NOSE TO TABLE ....... 2" - 18"
SPINDLE CENTER TO COLUMN .... 6.75" - 18.75"
STANDARD FEATURES:
- HIGH QUALITY TAIWAN-MADE MILL HEAD
- HIGH PRECISION CHINA-MADE BODY
- HIGH PRECISION LEADSCREWS
- SATIN CHROME FINISHED DIALS
- BUILT-IN COOLANT COLUMN BASE
- CLASS 7 SPINDLE BEARINGS
- DOVETAIL WAYS
- HARDENED AND GROUND X & Y WAYS
- TURCITE B ON WAYS FOR SMOOTH MOVEMENT
- DUAL SADDLE LOCKS AND DUAL KNEE LOCKS
- LARGE, EASY-TO-READ CHROME SATIN DIALS
- HARDENED AND GROUND TABLE
- CHROMED QUILL-HONED HEAD
- DRAWBAR/SERVICE WRENCH
- COOLANT SUMP IN COLUMN
- COOLAND DRAIN IN BASE
- FRONT & REAR CHIP GUARD
- DOUBLE KNEE LOCKS - RACHET STYLE
- CHROMED TURN-IN-THE-HAND HANDLES
- MEEHANITE CASTINGS
- 3-STAGE POWER DOWNFEED WITH AUTO STOP
- OPERATION/SERVICE MANUAL
OPTIONS .................... PRICE ON REQUEST
UNIQ DRO INSTALLED .................... POR
NEWALL DRO & X POWER FEED INSTALLED ... POR
MADE IN TAIWAN
