BIRMINGHAM MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$6,045 USD
Manufacturer:
Birmingham
Model:
BPV-3949-C
Capacity:
600 LBS

Specifications

Condition:
new
Stock number:
060891
Hand only:
35-1/2"
Ram travel:
12"
Table size:
9" X 49"
Quill taper:
R-8
Cross travel:
13-1/4"
Quill travel:
5"
Quill diameter:
3-3/8"
Spindle speeds:
60-4300
Vertical travel:
16"
With power feed:
33"
Head tilting f/b:
45/45 DEGREE
Head swivel rh/lh:
90/90 DEGREE
Ram turret swivel:
360 DEGREE
Motor and electrics:
3 HP 3 PHASE
Spindle speeds type:
VARI-SPEED
Table load capacity:
600 LBS
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

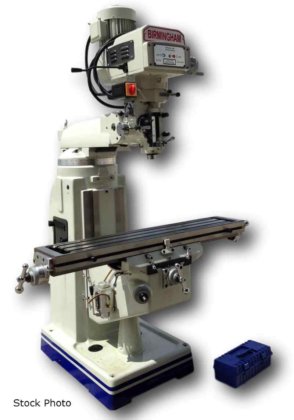

BIRMINGHAM (NEW) MODEL BPV-3949-C MILLING
MACHINE
TABLE SIZE ................ 9" X 49"
TABLE LOAD CAPACITY ....... 600 LBS
TABLE T-SLOTS - SIZE & # .. 5/8" X 3
LONGITUDINAL TRAVEL
- HAND ONLY ............... 35-1/2"
- WITH POWER FEED ......... 33"
CROSS TRAVEL .............. 13-1/4"
VERTICAL TRAVEL ........... 16"
RAM TRAVEL ................ 12"
QUILL FEED SPEEDS . 0.0015" 0.003" 0.006"/REV
QUILL TRAVEL .............. 5"
QUILL TAPER ............... R-8
QUILL DIAMETER ............ 3-3/8"
SPINDLE SPEEDS TYPE ....... VARI-SPEED
SPINDLE SPEEDS ............ 60-4300
HEAD SWIVEL RH/LH ......... 90/90 DEGREE
HEAD TILTING F/B .......... 45/45 DEGREE
RAM TURRET SWIVEL ......... 360 DEGREE
MOTOR AND ELECTRICS ....... 3 HP 3 PHASE
STANDARD EQUIPMENT:
- TOOL BOX
- FRONT CHIP GUARD
- REAR CHIP GUARD
- DRAW BAR
- ONE SHOT LUBRICATION
STANDARD FEATURES:
- HIGH-QUALITY TAIWAN-MADE MILL HEAD
- HIGH-PRECISION CHINA-MADE MILL BODY
- SATIN CHROME FINISHED DIALS
- BUILT-IN COOLANT COLUMN BASE
- DOUBLE KNEE AND TABLE LOCKS
- RAM EQUIPPED WITH DOUBLE LOCKS
- LARGE DIAMETER QUILL IS CHROMED
- ONE-PIECE PINION AND SHAFT
- SPINDLE HEAD IS INTERNALLY COOLED
- HARDENED AND GROUND WAYS
- HIGH-PRECISION CLASS 7 SPINDLE BEARINGS
- 3-STAGE POWER DOWNFEED WITH AUTO STOP
