BIRMINGHAM BPV-3VS in Dodge Center,
Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
Birmingham
Model:
BPV-3VS

Specifications

Condition:
new
Stock number:
061292
Subcategory:
Mills
Subcategory 2:
Vertical

Description

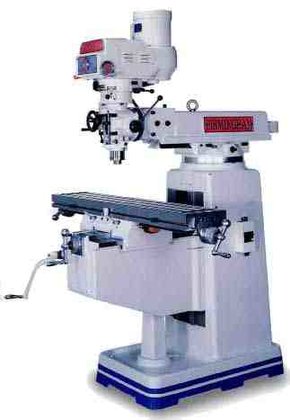

BIRMINGHAM (NEW) MODEL BPV-3VS VARIABLE SPEED
MILLING MACHINE WITH LEADSCREWS ON X AND Y
TABLE LOAD CAPACITY ......... 800 LBS
TABLE SIZE .................. 10" X 54"
LONGITUDINAL TRAVEL
HAND ONLY ................. 38"
WITH POWER FEED ........... 34.25"
TABLE T-SLOT SIZE ........... 5/8" X 3
CROSS TRAVEL ................ 18"
VERTICAL TRAVEL ............. 18"
RAM TRAVEL .................. 18"
QUILL FEED SPEEDS ........... 0.0015", 0.003"
........................... 0.006"/REV
QUILL TRAVEL ................ 5"
SPINDLE TAPER ............... R8
QUILL DIAMETER .............. 3-3/8"
HEAD SWIVEL RH/LH ........... 90/90 DEGREES
HEAD TILTING F/B ............ 45/45 DEGREES
RAM TURRET SWIVEL ........... 360 DEGREES
SPINDLE MOTOR ............... 3 HP, 3 PHASE
SPINDLE SPEEDS TYPE ......... VARIABLE SPEED
SPINDLE SPEEDS (RPM) ........ 60-4300
PREWIRED .................... 220 V, 3 PHASE
MAXIMUM MINIMUM
D ..... 18.75" ..... 2"
E ..... 12" ........ 0"
F ..... 20" ........ 6.75"
G ..... 25" ........
