BIRMINGHAM BPV-4KV-C in Dodge Center,
Location:
Dodge Center, MN, USA
Manufacturer:
Birmingham
Model:
BPV-4KV-C

Specifications

Condition:
new
Stock number:
060957
Subcategory:
Mills
Subcategory 2:
Vertical

Description

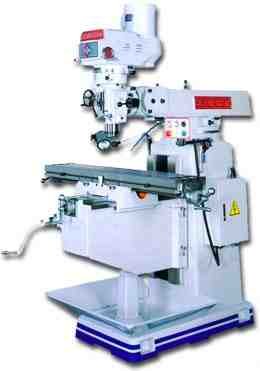

BIRMINGHAM (NEW) MODEL BPV-4KV-C VARIABLE
SPEED MILLING MACHINE W/LEADSCREWS ON X & Y
TABLE LOAD CAPACITY ......... 800 LBS
TABLE SIZE .................. 10" X 54"
LONGITUDINAL TRAVEL
HAND ONLY ................. 38"
WITH POWER FEED ........... 34.25"
TABLE T-SLOT SIZE ........... 5/8" X 3
CROSS TRAVEL ................ 18"
VERTICAL TRAVEL ............. 18"
RAM TRAVEL .................. 18"
QUILL FEED SPEEDS ........... 0.0015", 0.003"
........................... 0.006"/REV
QUILL TRAVEL ................ 5"
SPINDLE TAPER ............... NT40
QUILL DIAMETER .............. 3-3/8"
HEAD SWIVEL RH/LH ........... 90/90 DEGREES
HEAD TILTING F/B ............ 45/45 DEGREES
RAM TURRET SWIVEL ........... 360 DEGREES
SPINDLE MOTOR ............... 5 HP, 3 PHASE
SPINDLE SPEEDS TYPE ......... VARIABLE SPEED
SPINDLE SPEEDS .............. 60-4300 RPM
PREWIRED .................... 220 V, 3 PHASE
MAXIMUM MINIMUM
D ..... 18.75" ..... 2"
E ..... 12" ........ 0"
F ..... 20" ........ 6.75"
G ..... 25" .....
