CLAUSING MILLS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Clausing
Model:
4VSQCNCAR 2-AXIS VER

Specifications

Condition:
new
Stock number:
060958
Ram:
26.75"
Knee:
17.7"
Y cross:
16"
Knee ways:
SQUARE
Knee width:
14.96"
Ram length:
38.63"
Table load:
990 LBS
Table size:
10" X 54"
Table ways:
DOVETAIL
Column ways:
SQUARE
T-slot width:
0.63"
Motor variable:
5 HP
Quill diameter:
4.13"
Spindle travel:
5"
X longitudinal:
33"
Number of t-slots:
3
Main spindle taper:
ISO 40
Column bearing length:
19.7"
Column turret diameter:
16.33"
T-slot center distance:
2.48"
Ram/turret bearing length:
20.67"
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

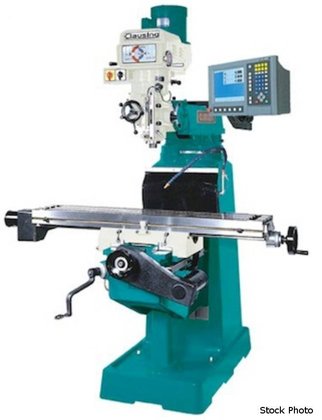

CLAUSING (NEW) 4VSQCNCAR 2-AXIS VERTICAL MILL
TABLE & WAYS
TABLE SIZE .................... 10" X 54"
NUMBER OF T-SLOTS ............. 3
T-SLOT WIDTH .................. 0.63"
T-SLOT CENTER DISTANCE ........ 2.48"
TABLE WAYS .................... DOVETAIL
KNEE WAYS ..................... SQUARE
COLUMN WAYS ................... SQUARE
TRAVEL
X LONGITUDINAL ................ 33"
Y CROSS ....................... 16"
KNEE .......................... 17.7"
RAM ........................... 26.75"
MOTORS & SPINDLE
MOTOR VARIABLE ................ 5 HP
VARIABLE SPINDLE SPEED - LOW .. 60-500 RPM
VARIABLE SPINDLE SPEED - HIGH . 550-4300
MAIN SPINDLE TAPER ............ ISO 40
SPINDLE TRAVEL ................ 5"
QUILL FEED ("/REV.) .... 0.0015 0.003 0.006
QUILL DIAMETER ................ 4.13"
CONSTRUCTION
COLUMN TURRET DIAMETER ........ 16.33"
KNEE WIDTH .................... 14.96"
COLUMN BEARING LENGTH ......... 19.7"
SADDLE/TABLE BEARING LENGTH ... 20.47"
RAM/TURRET BEARING LENGTH ..... 20.67"
RAM LENGTH .................... 38.63"
TABLE LOAD .................... 990 LBS
STANDARD FEATURES
ACU-RITE AND FAGOR CONTROL OPTIONS
OPERATING MODES
* MANUAL OPERATION WITH DRO
* SEMI-AUTOMATIC OPERATION
* FULL X, Y, AND Z AXES CNC OPERATION
MEEHANITE CASTINGS
HARDENED & GROUND X, Y, AND KNEE WAYS
TURCITE B APPLIED TO X AND Y WAYS
GROUND T-SLOTS PROVIDE REFERENCE EDGE
ABEC 7/CP4 SPINDLE BEARINGS
CHROMED AND GROUND QUILL
COOLANT SYSTEM WITH PUMP, SWITCH, AND
FLEXIBLE COOLANT NOZZLE
SPINDLE BRAKE (HAND OPERATED)
ONE-SHOT LUBRICATION
TOOL KIT, TEST AND ACCURACY CHART
OPERATIONS MANUAL/PARTS LIST
