Top Seller
JET MILLS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
JET Tools
Model:
350018 JMD-18
Capacity:
1-1/4"

Specifications

Condition:
new
Stock number:
060101
Swing:
15-7/8"
Head swivel:
360 DEGREE
Spindle taper:
R-8
Quill diameter:
3"
Column diameter:
4-1/2"
Cross travel (in):
7
Drilling capacity:
1-1/4"
End mill capacity:
3/4"
Face mill capacity:
3"
Max table travel (in):
24
Number of spindle speeds:
12
Working surface of table:
9 X 31
Max dist spindle to table:
18"
Subcategory:
Mills
Subcategory 2:
Vertical

Description

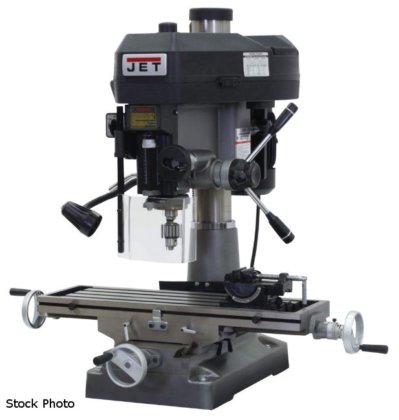

JET (NEW) MODEL 350018 JMD-18 MILLING /
DRILLING MACHINE
DRILLING CAPACITY................ 1-1/4"
FACE MILL CAPACITY............... 3"
END MILL CAPACITY................ 3/4"
SWING............................ 15-7/8"
MAX DIST SPINDLE TO TABLE........ 18"
SPINDLE TAPER.................... R-8
QUILL DIAMETER................... 3"
HEAD SWIVEL...................... 360 DEGREE
COLUMN DIAMETER.................. 4-1/2"
NUMBER OF SPINDLE SPEEDS......... 12
RANGE OF SPINDLE SPEEDS (RPM).... 120 - 2500
MAX TABLE TRAVEL (IN)............ 24
CROSS TRAVEL (IN)................ 7
WORKING SURFACE OF TABLE......... 9 X 31
STANDARD EQUIPMENT:
WORKLAMP; AJUST CARBIDE FACEMILL; ANGLE VISE
1/2" DRILL CHUCK; CHUCK ARBOR; DRAW BAR;
UL LISTED MOTOR; 2 HP, 1PH 230 VOLT ONLY
