JET MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$3,299 USD
Manufacturer:
JET Tools
Model:
350020 JMD-18PFN
Capacity:
1-1/4"

Specifications

Condition:
new
Stock number:
060532
Motor:
2 HP, 1 PHASE
Swing:
15-7/8"
Voltage:
230 VOLT
Table size:
9.5" X 31.75"
Spindle taper:
R-8
Quill diameter:
3"
Spindle travel:
5"
T-slot centers:
1-13/16"
T-slots - size:
5/8"
Base dimensions:
15.75 X 23.75
Column diameter:
4-1/2"
T-slots - number:
4
Drilling capacity:
1-1/4"
End mill capacity:
3/4"
Face mill capacity:
3"
Spindle travel auto:
4-1/4"
Quill downfeed rates:
0.0047 IPM
Range of spindle speeds:
150-3,000 RPM
Number of spindle speeds:
12
Table longitudinal travel:
20-1/2"
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

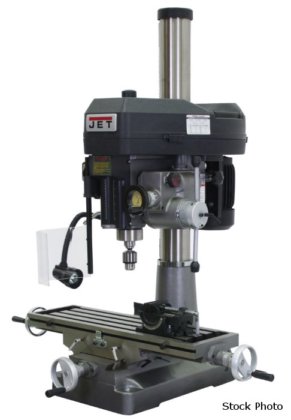

JET (NEW) MODEL 350020 JMD-18PFN MILLING /
DRILLING MACHINE
DRILLING CAPACITY ............. 1-1/4"
FACE MILL CAPACITY ............ 3"
END MILL CAPACITY ............. 3/4"
SWING ......................... 15-7/8"
MAX DISTANCE SPINDLE TO TABLE . 26"
SPINDLE TAPER ................. R-8
SPINDLE TRAVEL ................ 5"
SPINDLE TRAVEL AUTO ........... 4-1/4"
QUILL DOWNFEED RATES .......... 0.0047 IPM
.................. 0.007 IPM 0.001 IPM
QUILL DIAMETER ................ 3"
COLUMN DIAMETER ............... 4-1/2"
NUMBER OF SPINDLE SPEEDS ...... 12
RANGE OF SPINDLE SPEEDS ....... 150-3,000 RPM
TABLE SIZE .................... 9.5" X 31.75"
TABLE LONGITUDINAL TRAVEL ..... 20-1/2"
WORK TABLE WEIGHT CAPACITY .... 400 LBS
T-SLOTS - NUMBER .............. 4
T-SLOTS - SIZE ................ 5/8"
T-SLOT CENTERS ................ 1-13/16"
BASE DIMENSIONS ............... 15.75 X 23.75
MOTOR ......................... 2 HP, 1 PHASE
VOLTAGE ....................... 230 VOLT
FEATURES
1-PIECE CAST IRON COLUMN
UL LISTED MOTOR
POSITIVE QUICK-STOP KNOB
EASY-TO-READ INTERNAL DEPTH GAUGE
BELT COVER WITH QUICK SLIDE LATCH
STANDARD EQUIPMENT
WORKLAMP
ADJUSTABLE CARBIDE FACEMILL
DRILL PRESS ANGLE VISE
1/2" DRILL CHUCK, CHUCK ARBOR
DRAW BAR
