Top Seller
JET MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$7,999 USD
Manufacturer:
JET Tools
Model:
690082 JTM-1

Specifications

Condition:
new
Stock number:
060237
Motor:
2 HP 3 PH
Spindle:
0.0015"
Collet cap:
1/8" - 7/8"
T-slot size:
5/8"
Cross travel:
12"
Head movement:
90 DEG R&L
Size of table:
9" X 42"
Spindle taper:
R-8
Overarm travel:
12-1/4"
Spindle travel:
5"
T-slot centers:
2-1/2"
Travel of knee:
16"
Diameter of quill:
3.375"
Number of t-slots:
3
Max wgt of workpiece:
550 LBS
Max dist spdl to table:
17-1/2"
Max dist spdl to column:
19"
Min dist spdl to column:
6-3/4"
Range of spindle speeds:
80 - 5440 RPM
Number of spindle speeds:
16
Longitudinal table travel:
30"
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

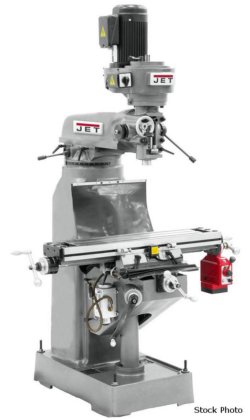

JET (NEW) MODEL 690082 JTM-1 TURRET MILLING
MACHINE
SIZE OF TABLE,,,,,,,,,,,,,,,,,, 9" X 42"
SPINDLE TAPER,,,,,,,,,,,,,,,,,, R-8
DIAMETER OF QUILL,,,,,,,,,,,,,, 3.375"
NUMBER OF SPINDLE SPEEDS,,,,,,, 16
RANGE OF SPINDLE SPEEDS,,,,,,,, 80 - 5440 RPM
DOWN FEEDS PER REVOLUTION OF
SPINDLE,,,,,,,,,,,,,,,,,,,,,, 0.0015"
0.003"-0.006"
SPINDLE TRAVEL,,,,,,,,,,,,,,,,, 5"
HEAD MOVEMENT,,,,,,,,,,,,,,,,,, 90 DEG R&L
45 DEG F&B
MAX DIST SPDL TO TABLE,,,,,,,,, 17-1/2"
MAX DIST SPDL TO COLUMN,,,,,,,, 19"
MIN DIST SPDL TO COLUMN,,,,,,,, 6-3/4"
COLLET CAP,,,,,,,,,,,,,,,,,,,,, 1/8" - 7/8"
LONGITUDINAL TABLE TRAVEL,,,,,, 30"
CROSS TRAVEL,,,,,,,,,,,,,,,,,,, 12"
NUMBER OF T-SLOTS,,,,,,,,,,,,,, 3
T-SLOT SIZE,,,,,,,,,,,,,,,,,,,, 5/8"
T-SLOT CENTERS,,,,,,,,,,,,,,,,, 2-1/2"
MAX WGT OF WORKPIECE,,,,,,,,,,, 550 LBS
TRAVEL OF KNEE,,,,,,,,,,,,,,,,, 16"
OVERARM TRAVEL,,,,,,,,,,,,,,,,, 12-1/4"
MOTOR,,,,,,,,,,,,,,,,,,,,,,,,,, 2 HP 3 PH
