JET 690089 JTM-2 in Dodge
Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
JET Tools
Model:
690089 JTM-2

Specifications

Condition:
new
Stock number:
060238
Subcategory:
Mills
Subcategory 2:
Vertical

Description

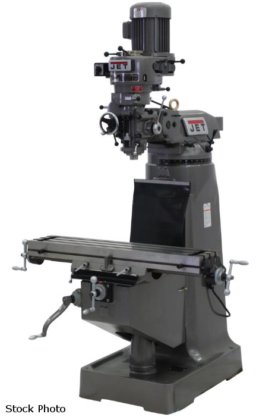

JET (NEW) MODEL 690089 JTM-1 TURRET MILLING
MACHINE
SIZE OF TABLE,,,,,,,,,,,,,,,,,, 9" X 42"
SPINDLE TAPER,,,,,,,,,,,,,,,,,, R-8
DIAMETER OF QUILL,,,,,,,,,,,,,, 3.375"
NUMBER OF SPINDLE SPEEDS,,,,,,, 16
RANGE OF SPINDLE SPEEDS,,,,,,,, 80 - 2720 RPM
DOWN FEEDS PER REVOLUTION OF
SPINDLE,,,,,,,,,,,,,,,,,,,,,, 0.0015"
0.003"-0.006"
SPINDLE TRAVEL,,,,,,,,,,,,,,,,, 5"
HEAD MOVEMENT,,,,,,,,,,,,,,,,,, 90 DEG R&L
45 DEG F&B
MAX DIST SPDL TO TABLE,,,,,,,,, 17-1/2"
MAX DIST SPDL TO COLUMN,,,,,,,, 19"
MIN DIST SPDL TO COLUMN,,,,,,,, 6-3/4"
COLLET CAP,,,,,,,,,,,,,,,,,,,,, 1/8" - 7/8"
LONGITUDINAL TABLE TRAVEL,,,,,, 30"
CROSS TRAVEL,,,,,,,,,,,,,,,,,,, 12"
NUMBER OF T-SLOTS,,,,,,,,,,,,,, 3
T-SLOT SIZE,,,,,,,,,,,,,,,,,,,, 5/8"
T-SLOT CENTERS,,,,,,,,,,,,,,,,, 2-1/2"
MAX WGT OF WORKPIECE,,,,,,,,,,, 550 LBS
TRAVEL OF KNEE,,,,,,,,,,,,,,,,, 16"
OVERARM TRAVEL,,,,,,,,,,,,,,,,, 12-1/4"
MOTOR,,,,,,,,,,,,,,,,,,,,,,,,,, 2 HP 1 PH
