Top Seller
JET MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$9,199 USD
Manufacturer:
JET Tools
Model:
690180 JTM-4VS
Capacity:
1/8" - 7/8"

Specifications

Condition:
new
Stock number:
060228
T-slot size:
5/8"
Head movement:
90 DEG R-L
Size of table:
9" X 49"
Spindle taper:
R-8
Spindle travel:
5"
T-slot centers:
2-1/2"
Travel of knee:
16"
Collet capacity:
1/8" - 7/8"
Diameter of quill:
3.375"
Number of t-slots:
3
Cross travel of table:
12"
Range of spindle speeds:
60-4200 RPM
Number of spindle speeds:
VARIABLE
Longitudinal table travel:
36"
Max dist spindle to table:
18-3/8"
Max dist spindle to column:
19"
Min dist spindle to column:
6-3/4"
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

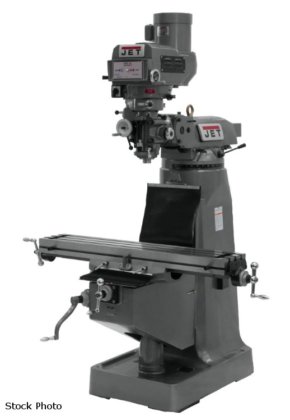

JET (NEW) MODEL 690180 JTM-4VS VARIABLE
SPEED MILLING MACHINE
SIZE OF TABLE,,,,,,,,,,,,,,,,,,, 9" X 49"
SPINDLE TAPER,,,,,,,,,,,,,,,,,,, R-8
DIAMETER OF QUILL,,,,,,,,,,,,,,, 3.375"
NUMBER OF SPINDLE SPEEDS,,,,,,,, VARIABLE
RANGE OF SPINDLE SPEEDS,,,,,,,,, 60-4200 RPM
DOWNFEED P/REVOLUTION OF SPDL,,, .0015"-.003"
.006"
SPINDLE TRAVEL,,,,,,,,,,,,,,,,,, 5"
HEAD MOVEMENT,,,,,,,,,,,,,,,,,,, 90 DEG R-L
45 DEG F-B
MAX DIST SPINDLE TO TABLE,,,,,,, 18-3/8"
MAX DIST SPINDLE TO COLUMN,,,,,, 19"
MIN DIST SPINDLE TO COLUMN,,,,,, 6-3/4"
COLLET CAPACITY,,,,,,,,,,,,,,,,, 1/8" - 7/8"
LONGITUDINAL TABLE TRAVEL,,,,,,, 36"
CROSS TRAVEL OF TABLE,,,,,,,,,,, 12"
NUMBER OF T-SLOTS,,,,,,,,,,,,,,, 3
T-SLOT SIZE,,,,,,,,,,,,,,,,,,,,, 5/8"
T-SLOT CENTERS,,,,,,,,,,,,,,,,,, 2-1/2"
TRAVEL OF KNEE,,,,,,,,,,,,,,,,,, 16"
EQUIPPED WITH:
3 HP 3 PHASE 230/460 VOLT
