KENT MILLS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Kent
Model:
KTM-3VK

Specifications

Condition:
new
Stock number:
060952
(140/150):
$ POR
11 pc/set:
$ POR
Ram travel:
22"
Table size:
10" X 50"
Knee travel:
15"
Cross travel:
15"
Quill travel:
5"
Spindle motor:
3 HP
Spindle speed:
60 - 500 - 4200
Spindle taper:
R-8
6" riser block:
$ POR
8" riser block:
$ POR
Quill feed rate:
0.0015", 0.0030"
Servo cross 150:
$ POR
Air power drawbar:
$ POR
Ac frequenty drive:
ADD, $ POR
Longitudinal travel:
36"
Knee 140 power feeds:
$ POR
Clamping kit (52 pcs):
$ POR
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

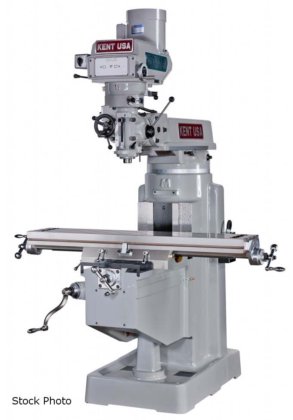

(NEW) KENT MDL KTM-3VKH MILLING MACHINE
TABLE SIZE,,,,,,,,,,,,,,,, 10" X 50"
LONGITUDINAL TRAVEL,,,,,,, 36"
CROSS TRAVEL,,,,,,,,,,,,,, 15"
RAM TRAVEL,,,,,,,,,,,,,,,, 22"
KNEE TRAVEL,,,,,,,,,,,,,,, 15"
QUILL TRAVEL,,,,,,,,,,,,,, 5"
SPINDLE TAPER,,,,,,,,,,,,, R-8
SPINDLE MOTOR,,,,,,,,,,,,, 3 HP
SPINDLE SPEED,,,,,,,,,,,,, 60 - 500 - 4200
QUILL FEED RATE,,,,,,,,,,, 0.0015", 0.0030"
0.0060" PER REV
EQUIPPED WITH:
3 HP SPINDLE MOTOR
VARIABLE SPEED
X, Y, AND KNEE BY HARDENED AND GROUND
DOVETAIL WAYS
PRECISION BORED AND GROUND MILLING HEAD
ULTRA PRECISION SPINDLE WITH AVEC-7 BEARING
CHROME PLATED AND GROUND SPINDLE QUILL
MEEHANITE GA-50 CASTING
ONE SHOT LUBRICATOR
FRONT AND BACK WAY COVERS
OPTIONS:
AC FREQUENTY DRIVE,,,,,,,ADD, $ POR
SERVO TABLE POWER FEEDS
(140/150),,,,,,,,,,,,,,,,,, $ POR
SERVO CROSS 150,,,,,,,,,,,,,, $ POR
KNEE 140 POWER FEEDS,,,,,,,,, $ POR
BESTLINE TABLE POWER FEED,,,, $ POR
FLOOD COOLANT SYSTEM
(EXTERNAL TANK SYSTEM),,,,, $ POR
AIR POWER DRAWBAR,,,,,,,,,,,, $ POR
6" RISER BLOCK,,,,,,,,,,,,,,, $ POR
8" RISER BLOCK,,,,,,,,,,,,,,, $ POR
12" ROTARY TABLE
(VERTICAL & HORIZONTAL),,,, $ POR
CLAMPING KIT (52 PCS),,,,,,,, $ POR
R-8 COLLETS (1/8" TO 3/4")
11 PC/SET,,,,,,,,,,,,,,,,,, $ POR
