Top Seller
KENT MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$24,000 USD
Manufacturer:
Kent
Model:
KTM-3VKF

Specifications

Condition:
new
Stock number:
060944
Chip tray:
$ POR
Ram travel:
22"
Table size:
50" X 10"
Knee travel:
15"
Quill travel:
5" (4" W/MILLPWR-3
Table travel:
36" (32" W/CNC CONTROL)
Saddle travel:
15.25(14" W/CNC CONTROL
Spindle motor:
3 HP (INVERTER-DUTY)
Spindle taper:
R-8
Quill diameter:
3.375"
Spindle speeds:
60-550-4500 RPM
Table to floor:
34" - 49"
(built in base):
$ POR
(external tank):
$ POR
Nmtb-30 spindle:
$ POR
Knee (z-axis) power feed:
$ POR
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

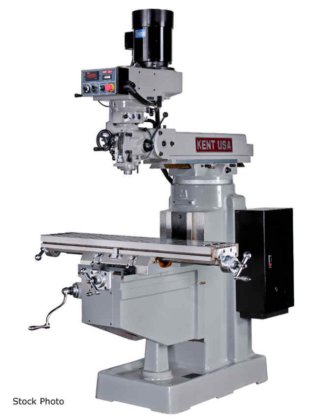

(NEW) KENT MDL KTM-3VKF-MILLPR-2
MILLING MACHINE
TABLE SIZE,,,,,,,,,,, 50" X 10"
TABLE TRAVEL,,,,,,,,, 36" (32" W/CNC CONTROL)
SADDLE TRAVEL,,,,,,,, 15.25(14" W/CNC CONTROL
KNEE TRAVEL,,,,,,,,,, 15"
RAM TRAVEL,,,,,,,,,,, 22"
QUILL TRAVEL,,,,,,,,, 5" (4" W/MILLPWR-3
CNC CONTROL)
QUILL DIAMETER,,,,,,, 3.375"
SPINDLE MOTOR,,,,,,,, 3 HP (INVERTER-DUTY)
SPINDLE TAPER,,,,,,,, R-8
SPINDLE SPEEDS,,,,,,, 60-550-4500 RPM
(60-6000 ON HS HEAD
OPTIONAL)
TABLE TO FLOOR,,,,,,, 34" - 49"
SPINDLE TO TABLE,,,,, 2.75" - 17.75"
SPINDLE TO COLUMN,,,, 5" - 27"
MAXIMUM WORKLOAD,,,,, 850 LBS (CENTERED)
POWER REQUIREMENTS:
220 VOLT 3 PHASE OR 1 PHASE FOR MACHINE 10A
OPTIONAL 440 VOLT REQUIRES 3 PHASE,
110 VOLT DEDICATED FOR CNC CONTROL, 20A
OUTSTANDING FEATURES:
3 HP AC-FREQ DRIVE HEAD WITH DIGITAL RPM
DISPLAY AND ANALOG LOAD METER
60-550-4500 SPINDLE RPM (HI/LOW GEAR)
AUTOMATIC CENTRALIZED LUBRICATION SYSTEM WITH
METERED CHECK-VALVES
SINGLE-PHASE OR 3 PHASE POWER WITHOUT THE
NEED FOR A PHASE CONVERTOR
HARDENED AND GROUND (Hrc-52) TABLE SURFACE
AND ALL SLIDE WAYS
EASY CONVERSATIONAL PROGRAMMING, DRO-MODE
ALLOWS FOR FULL MANUAL OPERATIONS
ENGRAVING FEATURE AND DXF FILE IMPORT
CAPABILITY BUILT-IN, 3.5" FLOPPY DRIVE
AND 10" FLAT PANEL COLOR LCD DISPLAY
MACHINE OPTIONS:
QUICK CHANGE TOOLING PKG (MACH-1),,$ POR
QUICK CHANGE SPINDLE
(UNIVERSAL KWIK-SWITCH-200),,,,,,$ POR
NMTB-30 SPINDLE,,,,,,,,,,,,,,,,,,,,$ POR
AIR POWER DRAWBAR (MAXI-TORQUE)
made in USA,,,,,$ POR
CHIP TRAY,,,,,,,,,,,,,,,,,,,,,,,,,,$ POR
FLOOD COOLANT SYSTEM
(BUILT IN BASE),,,,,,,,,,,,,,,,,,$ POR
FLOOD COOLANT SYSTEM
(EXTERNAL TANK),,,,,,,,,,,,,,,,,,$ POR
KNEE (Z-AXIS) POWER FEED,,,,,,,,,,,$ POR
