Top Seller
KENT MILLS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Kent
Model:
KTM-3VS
Capacity:
6.0" DIAMETER

Specifications

Condition:
new
Stock number:
060930
Ram travel:
14.5"
Table size:
9" X 42"
Quill travel:
5"
Spindle motor:
3 HP (1750 RPM
Spindle speed:
60-550-4500
Spindle taper:
R-8
Quill diameter:
3.375"
Boring capacity:
6.0" DIAMETER
Quill feed rate:
0.0015/0.003/
Milling capacity:
2.0 IN/MN
Air power drawbar:
$ POR
Acu-rite dro system:
$ POR
Ac - frequency drive:
$ POR
Knee travel (z-axis):
15"
Max work load center:
750 LBS
Table travel (x-axis):
28"
Knee z axis power feed:
$ POR
Saddle travel (y-axis):
12"
Drilling capacity power:
0.37" DIAMETER
Table x axis power feed:
$ POR
Saddle y axis power feed:
$ POR
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

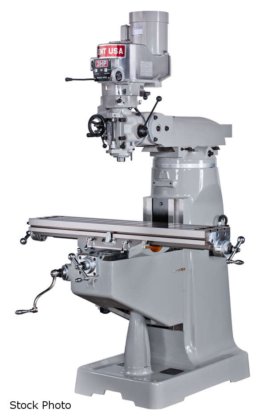

(NEW) KENT MDL KTM-3VS MILLING MACHINE
TABLE SIZE,,,,,,,,,,,,,,,,,,, 9" X 42"
TABLE TRAVEL (X-AXIS),,,,,,,, 28"
SADDLE TRAVEL (Y-AXIS),,,,,,, 12"
KNEE TRAVEL (Z-AXIS),,,,,,,,, 15"
QUILL TRAVEL,,,,,,,,,,,,,,,,, 5"
RAM TRAVEL,,,,,,,,,,,,,,,,,,, 14.5"
SPINDLE MOTOR,,,,,,,,,,,,,,,, 3 HP (1750 RPM
@ 60 HZ
SPINDLE SPEED,,,,,,,,,,,,,,,, 60-550-4500
SPINDLE TAPER,,,,,,,,,,,,,,,, R-8
QUILL DIAMETER,,,,,,,,,,,,,,, 3.375"
QUILL FEED RATE,,,,,,,,,,,,,, 0.0015/0.003/
0.006" PER REV
DRILLING CAPACITY MANUAL,,,,, 0.75" DIAMETER
DRILLING CAPACITY POWER,,,,,, 0.37" DIAMETER
BORING CAPACITY,,,,,,,,,,,,,, 6.0" DIAMETER
MILLING CAPACITY,,,,,,,,,,,,, 2.0 IN/MN
MAX WORK LOAD CENTER,,,,,,,,, 750 LBS
3 HP SPINDLE MOTOR, VARIABLE SPEED HEAD
9" X 42" HARDENED AND GROUND TABLE
TABLE, SADDLE AND KNEE BY HARDENED AND GROUND
DOVETAIL WAYS
PRECISION GROUND LEADSCREWS WITH BACKLASH
COMPENSATING DOUBLE NUT
MEEHANITE CASTING
CENTRALIZED ONE SHOT LUBRICATION
OPTIONS:
AC - FREQUENCY DRIVE ,,,,,,,,,, $ POR
ACU-RITE DRO SYSTEM,,,,,,,,,,,, $ POR
TABLE X AXIS POWER FEED,,,,,,,, $ POR
SADDLE Y AXIS POWER FEED,,,,,,, $ POR
KNEE Z AXIS POWER FEED,,,,,,,,, $ POR
AIR POWER DRAWBAR,,,,,,,,,,,,,, $ POR
FLOOD COOLANT SYSTEM INTERNAL,, $ POR
