WILLIS SOLBERGA MILLS in Dodge
Location:
Dodge Center, MN
Manufacturer:
WILLIS SOLBERGA
Model:
1050II
Weight:
1100 LBS

Specifications

Condition:
new
Stock number:
060465
Min/max:
2" - 19-3/4"
Knee width:
14-1/8"
Ram swivel:
360"
Ram travel:
21-1/2"
Knee height:
13-1/8"
T-slots (3):
5/8"
Coolant pump:
OPTIONAL
Quill travel:
5"
Saddle width:
22"
Spindle motor:
3 HP
Spindle taper:
R-8 OR 30
Quill diameter:
3-3/8"
Table dimensions:
50" X 10"
Table rising motor:
OPTIONAL
Column face min/max:
6" - 27-1/2"
Vertical knee travel:
16"
Max work piece weight:
1100 LBS
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

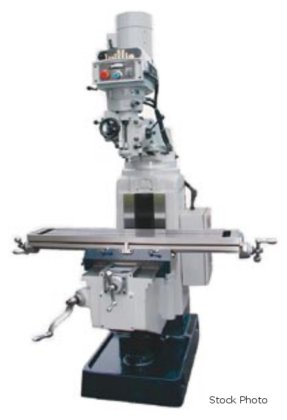

(NEW) WILLIS-SOLBERGA MICROCUT MODEL 1050II
CNC TURRET MILLING MACHINE
TABLE DIMENSIONS,,,,,,,,,,, 50" X 10"
TRAVELS LONGITUDINAL/CROSS, 34" X 16" MANUAL
VERTICAL KNEE TRAVEL,,,,,,, 16"
T-SLOTS (3),,,,,,,,,,,,,,,, 5/8"
RAM TRAVEL,,,,,,,,,,,,,,,,, 21-1/2"
RAM SWIVEL,,,,,,,,,,,,,,,,, 360"
QUILL DIAMETER,,,,,,,,,,,,, 3-3/8"
QUILL TRAVEL,,,,,,,,,,,,,,, 5"
SPINDLE MOTOR,,,,,,,,,,,,,, 3 HP
SPINDLE SPEEDS VARIABLE,,,, (16) 60 - 4200
SPINDLE TAPER,,,,,,,,,,,,,, R-8 OR 30
QUILL POWER FEED RATES,,,,, 0.0032"
INCHES PER REVOLUTION 0.0017" - 0.0033"
HEAD TILTING-LEFT TO RIGHT, 90-0-90 DEGREES
HEAD TILTING-FRONT TO BACK, 45-0-45 DEGREES
SPINDLE NOSE TO TABLE
MIN/MAX,,,,,,,,,,,,,,,,,,, 2" - 19-3/4"
CENTER OF SPINDLE TO
COLUMN FACE MIN/MAX,,,,,,, 6" - 27-1/2"
GROUND WAY SURFACE WIDTH,,, 3-5/8"
SADDLE WIDTH,,,,,,,,,,,,,,, 22"
KNEE WIDTH,,,,,,,,,,,,,,,,, 14-1/8"
KNEE HEIGHT,,,,,,,,,,,,,,,, 13-1/8"
LONGITUDINAL POWER FEED,,,, OPTIONAL
LONGITUDINAL FEED MOTOR,,,, OPTIONAL
TABLE RISING MOTOR,,,,,,,,, OPTIONAL
COOLANT PUMP,,,,,,,,,,,,,,, OPTIONAL
MAX WORK PIECE WEIGHT,,,,,, 1100 LBS
