Top Seller
MESSER PLASMA, BURN, FLAME in
Location:
Dodge Center, MN
Manufacturer:
SEC
Model:
MPC2000 PLASMA
Capacity:
26 GA TO 6"

Specifications

Condition:
new
Stock number:
061742
Width:
8' - 26'
Length:
6' - 100'
Acceleration:
32" PER SEC
Precision plasma:
UP TO 400
Contouring speeds:
400 IPM
Positioning speeds:
1000 IPM
Thickness capacity:
26 GA TO 6"
Conventional plasma:
100 - 760

Description

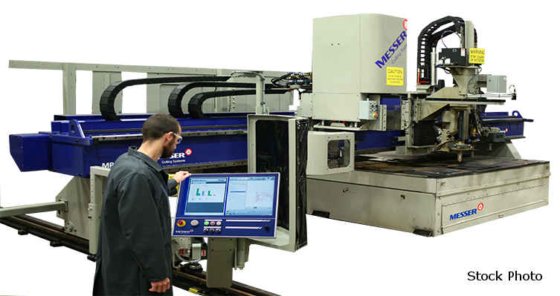

MESSER (NEW) MODEL MPC2000 (MULTI PROCESS
CENTER 2000) PLASMA CUTTING SYSTEM
LARGE-GANTRY, PRECISION MULTI-PROCESS CUTTING
MACHINE WITH PROGRAMMABLE PL-1 LIFTERS.
CAN BE EQUIPPED WITH MULTIPLE CARRIAGES
AND UP TO 5 SEPARATE PROCESSES INCLUDING
PRECISION PLASMA, CONVENTIONAL PLASMA,
OXYFUEL AND MARKERS.
CONTROL TYPE - USER-FRIENDLY INTERFACE USING
WINDOWS AND PC-BASED CNC.
MATERIALS - STEEL, STAINLESS STEEL, ALUMINUM
THICKNESS CAPACITY ............. 26 GA TO 6"
TOOL COVERAGE:
WIDTH .......................... 8' - 26'
LENGTH ......................... 6' - 100'
MACHINE MOTION ACCURACY TO +/-.010" WITH
REPEATABILITY OF +/-.003" IN ANY 72" MOVE.
PLASMA AMPS:
CONVENTIONAL PLASMA ............ 100 - 760
PRECISION PLASMA ............... UP TO 400
POSITIONING SPEEDS ............. 1000 IPM
ACCELERATION ................... 32" PER SEC
CONTOURING SPEEDS .............. 400 IPM
4 SEPARATE TOOL STATIONS MAY BE INSTALLED.
TOOLS AVAILABLE:
TORCH - TURBOFLAME OR ALFA OXYFUEL
BEVELING - PLASMA AND OXYFUEL INCLUDING THE
GLOBAL ROTATOR DELTA PLASMA BEVEL UNIT
MARKER - PUNCH, PLASMA, POWDER, INK JET OR
AIR SCRIBE
ELECTRIC DRILL
LASER POINTER
VIDEO CAMERA
INCLUDES LINEAR MOTION WAYS AND STATE-OF-THE-
ART AC SERVO DRIVES TO PROVIDE DEPENDABLE
MACHINE TOOL PERFORMANCE.
DIGITAL AC BRUSHLESS SERVO DRIVES & PRECISION
PLANETARY GEARBOXES IN BOTH THE 'X' AND 'Y'
AXES ALLOWS FOR HIGH-SPEED POSITIONING AND
CONTOURING AT 1000 IPM.
HEAVY-DUTY CONSTRUCTION ALLOWS 24/7 OPERATION
DUAL BEAM CONSTRUCTION.
DESIGNED AND MANUFACTURED IN THE USA.
