Top Seller
BAILEIGH PRESSES in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Baileigh presses
Model:
HSP-110M
Capacity:
110 TONS
Stroke:
15.75"

Specifications

Condition:
new
Stock number:
061760
Rpm:
3,000
Motor:
3 HP
Power:
220V/3 PHASE
Return speed:
0.5"/SECOND
Working speed:
0.106"/SECOND
Working width:
36.22"
Lowering speed:
0.362"/SECOND
Pump speed (2):
1.5/5.17 GAL/MIN
Cylinder stroke:
15.75"
Maximum capacity:
110 TONS
Maximum pressure:
3858 PSI
Movable cylinder:
YES
Cylinder diameter:
10"
Oil tank capacity:
7.92 GAL
Piston rod diameter:
4.33"
System oil capacity:
3.17 GAL
Piston head diameter:
4.72"
Subcategory:
Hydraulic

Description

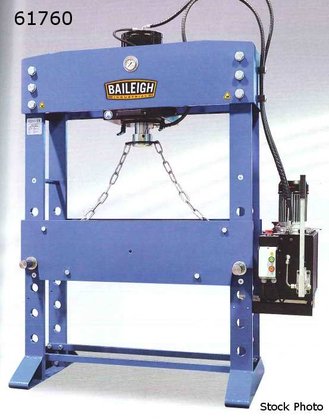

BAILEIGH (NEW) MODEL HSP-110M HYDRAULIC PRESS
MAXIMUM CAPACITY ........... 110 TONS
MAXIMUM PRESSURE ........... 3858 PSI
WORKING SPEED .............. 0.106"/SECOND
LOWERING SPEED ............. 0.362"/SECOND
RETURN SPEED ............... 0.5"/SECOND
WORKING WIDTH .............. 36.22"
MOVABLE CYLINDER ........... YES
CYLINDER STROKE ............ 15.75"
CYLINDER DIAMETER .......... 10"
PISTON ROD DIAMETER ........ 4.33"
PISTON HEAD DIAMETER ....... 4.72"
SYSTEM OIL CAPACITY ........ 3.17 GAL
OIL TANK CAPACITY .......... 7.92 GAL
PUMP SPEED (2) ............. 1.5/5.17 GAL/MIN
RPM ........................ 3,000
MOTOR ...................... 3 HP
POWER ...................... 220V/3 PHASE
2-SPEED HYDRAULIC WITH MANUAL MODE
AUTOMATIC CYLINDER RETURN
STANDARD PRESSURE GAUGE
LIFT CHAINS
FOB WI
