DAKE PRESSES in Dodge Center,
Location:
Dodge Center, MN
Price:
$13,200 USD
Manufacturer:
Dake presses
Model:
5-050 SINGLE
Capacity:
50 TON

Specifications

Condition:
new
Stock number:
060537
Rpm:
1800
Horsepower:
2
Ram travel:
10"
Rated capacity:
50 TON
Maximum ram to table:
40"
Minimum ram to table:
5"
Width between uprights:
32-3/4"
Horizontal workhead travel:
14-3/8"
Width between table channels:
7-1/2"
Subcategory:
Hydraulic

Description

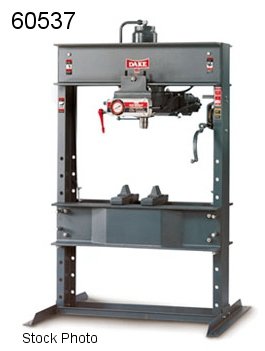

DAKE (NEW) MODEL 5-050 ELEC-DRAULIC I
HYDRAULIC PRESS SINGLE ACTION
RATED CAPACITY .................... 50 TON
HORSEPOWER ........................ 2
RPM ............................... 1800
RAM SPEED-" PER MINUTE - ADVANCE .. 40 IPM
RAM SPEED-" PER MINUTE - PRESS .... 7 IPM
WIDTH BETWEEN UPRIGHTS ............ 32-3/4"
WIDTH BETWEEN TABLE CHANNELS ...... 7-1/2"
MINIMUM RAM TO TABLE .............. 5"
MAXIMUM RAM TO TABLE .............. 40"
RAM TRAVEL ........................ 10"
HORIZONTAL WORKHEAD TRAVEL ........ 14-3/8"
FEATURES:
- ELECTRIC OPERATION
- SINGLE-ACTING CYLINDER PROVIDES FAST,
RELIABLE PRESSING & INTERNAL SPRING RETURN
- RAPID RAM APPROACH AND RETURN
- VARIABLE RAM SPEED FOR PRECISE PRESSURE
CONTROL
- MOVABLE WORKHEAD IS ROLLER MOUNTED ON BALL
BEARINGS FOR OFF-CENTER WORK
- SAFETY VALVE PROTECTS AGAINST OVERLOADS
- STROKE INDICATOR ENSURES ACCURATE RAM
CONTROL
- ADJUSTABLE TABLE PERMITS EASY VERTICAL
MOVEMENT BY MEANS OF SELF-LOCKING HOIST
STANDARD EQUIPMENT:
- FRAME
- WORKHEAD
- 2 FORGED STEEL V-BLOCKS
- 2 FORGED STEEL TABLE PLATES
- FLAT RAM NOSE
- V-RAM NOSE
- MOTOR 230/460-3-60
- STROKE INDICATOR
- PRESSURE GAUGE
- SAFETY RELIEF VALVE
- SELF-LOCKING TABLE HOIST
