DAKE PRESSES in Dodge Center,
Location:
Dodge Center, MN
Price:
$16,420 USD
Manufacturer:
Dake presses
Model:
8-050 DOUBLE
Capacity:
18 TON

Specifications

Condition:
new
Stock number:
060540
Rpm:
1800
Horsepower:
2
Ram travel:
10"
Maximum ram to table:
45-1/8"
Minimum ram to table:
10-1/8"
Rated capacity - pull:
18 TON
Rated capacity - press:
50 TON
Width between uprights:
32-3/4"
Width between table channels:
7-1/4"
Subcategory:
Hydraulic

Description

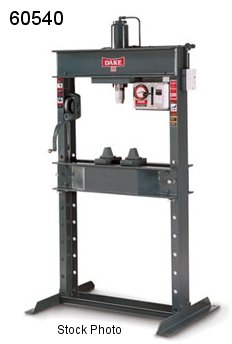

DAKE (NEW) MODEL 8-050 ELEC-DRAULIC II
HYDRAULIC PRESS DOUBLE ACTION
RATED CAPACITY - PRESS ............ 50 TON
RATED CAPACITY - PULL ............. 18 TON
HORSEPOWER ........................ 2
RPM ............................... 1800
RAM SPEED-" PER MINUTE - PRESS .... 8 IPM
RAM SPEED-" PER MINUTE - RETURN ... 22 IPM
WIDTH BETWEEN UPRIGHTS ............ 32-3/4"
WIDTH BETWEEN TABLE CHANNELS ...... 7-1/4"
MINIMUM RAM TO TABLE .............. 10-1/8"
MAXIMUM RAM TO TABLE .............. 45-1/8"
RAM TRAVEL ........................ 10"
FEATURES:
- ELECTRIC OPERATION
- DOUBLE-ACTING CYLINDER PERMITS PULLING AS
WELL AS PRESSING RAM ACTION
- VARIABLE RAM SPEED FOR PRECISE PRESSURE
CONTROL
- SAFETY VALVE PROTECTS AGAINST OVERLOADS
- H-FRAME MOUNTED CONTROL
- T-RING SEALS PREVENT PRESSURE LOSS
- ADJUSTABLE TABLE PERMITS EASY VERTICAL
MOVEMENT BY MEANS OF SELF-LOCKING HOIST
- OPTIONAL BOLT FLANGE FOR TOOLING ATTACHMENT
MAY BE SUBSTITUTED FOR FLAT RAM NOSE
STANDARD EQUIPMENT:
- FRAME
- DOUBLE-ACTING WORKHEAD
- 2 FORGED STEEL V-BLOCKS
- 2 FORGED STEEL TABLE PLATES
- FLAT RAM NOSE
- MOTOR 230/460-3-60
- PUMP
- PRESSURE GAUGE
- SAFETY RELIEF VALVE
- 4-WAY THROTTLING VALVE
- SELF-LOCKING TABLE HOIST
