Top Seller
SUTHERLAND PRESSES in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
SUTHERLAND
Model:
SL1-132-48
Capacity:
132 TON
Stroke:
5.98"

Specifications

Condition:
new
Stock number:
061754
Capacity:
132 TON
Slide area:
23.6"
Bolster area:
29.5"
Stroke length:
5.98"
Floor to bolster:
38.98"
Bolster thickness:
5.91"
Side window opening:
19.7"
Air pressure required:
71 PSI
Above bottom dead center:
0.28"
Stroke down/adjustment up:
14.76"
Strokes per minute-variable:
40-80 SPM

Description

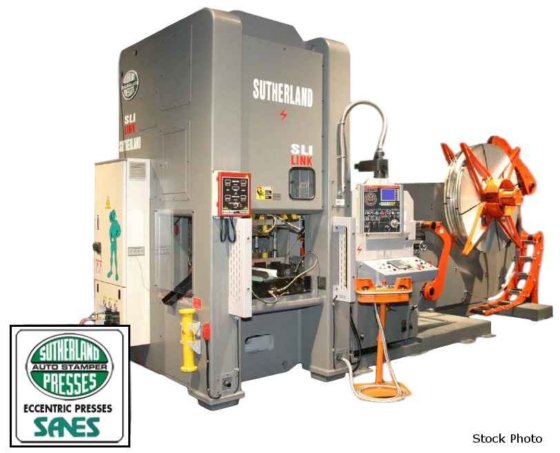

SUTHERLAND (NEW) MODEL SL1-132-48 SINGLE
GEARED STRAIGHT SIDE PRESS
CAPACITY .......................... 132 TON
STROKE LENGTH ..................... 5.98"
STROKES PER MINUTE-VARIABLE ....... 40-80 SPM
RATING POINT
ABOVE BOTTOM DEAD CENTER ........ 0.28"
DIE HEIGHT ON TOP OF BOLSTER
STROKE DOWN/ADJUSTMENT UP ....... 14.76"
DIE HEIGHT ADJUSTMENT
MOTORIZED WITH DIGITAL READOUT .. 3.15"
LR X FB / JIC T-SLOTS ON 6" CENTERS:
SLIDE AREA ...................... 23.6"
BOLSTER AREA .................... 29.5"
BOLSTER THICKNESS ................. 5.91"
FLOOR TO BOLSTER .................. 38.98"
SIDE WINDOW OPENING ............... 19.7"
MAIN MOTOR
VARI SPEED/EDDY CURRENT/480 VOLTS 15 HP
SLIDE ADJUSTMENT MOTOR
GEARED SHAFT DRIVE/ELEC BRAKE ... 1 HP
AIR PRESSURE REQUIRED ............. 71 PSI
AIR COUNTER BALANCE CAPACITY
ADJUSTABLE @ AIRCENTER/TWIN ACB . 3,740 LBS
FOB MICHIGAN
