Location:
Dodge Center, MN, USA
Manufacturer:
Euromac presses
Model:
FLEX12 1500/22-2500

Specifications

Condition:
new
Stock number:
061752
Subcategory:
Punches
Subcategory 2:
Fabricators

Description

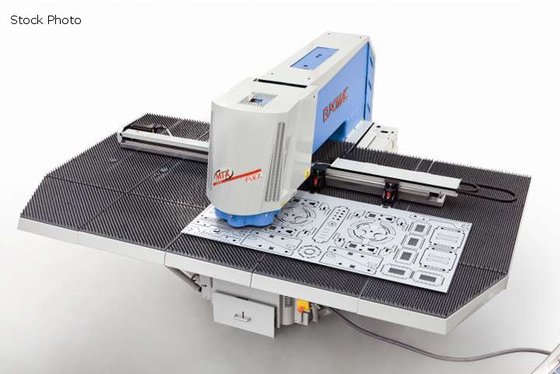

EUROMAC (NEW) MODEL MTX FLEX12 1500/22-2500
TURRET
MAXIMUM PUNCHING FORCE ....... 220 kN
Y-AXIS WITH MULTITOOL ........ 1550 MM
Y-AXIS WITH SINGLE TOOL ...... 1500 MM
X-AXIS ....................... 2500 MM
AUTO REPOSITIONING IN X ...... UP TO 10000 MM
POSITIONING ACCURACY ......... +/- 0.1 MM
NR.3 BI-DIRECTIONAL AUTOINDEX STATIONS .. YES
MAX HIT RATE (1/MIN)*
PUNCHING WITH 20 MM PITCH .. 375
NIBBLING WITH .039" PITCH .. 1000
MARKING .................... 2000
* HIT RATE DEPENDS ON STROKE LENGTH, RAM
SPEED, ACCELERATION/DECELERATION AND AXES
SPEED
THICKNESS RANGE .............. 0.5-6.5 MM
SHEET WT.WITH COMBINED TABLES UP TO 200 Kg
INSTALLED POWER .............. 8.5 kW
OVERALL DIMENSIONS X=2500 .... 3970 X 3980 MM
6 D STATIONS - 3 ARE PROGRAMMABLE INDEX
STATIONS WITH THE ABILITY TO ROTATE IN
INCREMENTS OF 0.01 DEGREES UP TO 360 DEG.
UP TO 66 TOOLS IN 1 SETUP
UP TO 18 INDEXABLE TOOLS IN 1 SETUP
EACH STATION CAN BE EQUIPPED WITH SINGLE
THICK TURRET TOOL OR VARIETY OF MULTITOOLS
