WA WHITNEY PLASMA, BURN, FLAME
Location:
Dodge Center, MN
Manufacturer:
Whitney
Model:
3400XP PLASMA PUNCH
Weight:
1000#

Specifications

Condition:
new
Stock number:
061568
.375:
2.75"
.500:
1.00"
Tooling style:
36TC
Punching force:
40 TON
Number of tools:
9
Slag collection:
DRY
Maximum thickness:
0.500"
Maximum tool diameter:
5.00"
Nominal x-axis travel:
140"
Nominal y-axis travel:
60"
Maximum work piece weight:
1000#
Maximum hole size m.s..250:
5.00"

Description

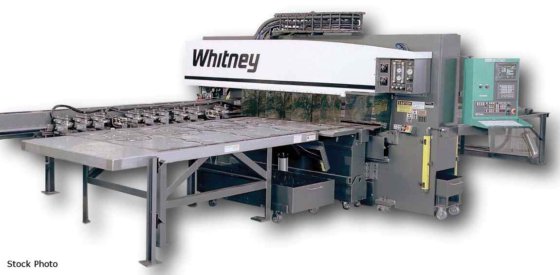

W.A. WHITNEY (NEW) MODEL 3400XP PLASMA PUNCH
40 TON X 140"
PUNCHING FORCE ................... 40 TON
NOMINAL X-AXIS TRAVEL ............ 140"
NOMINAL Y-AXIS TRAVEL ............ 60"
MAXIMUM WORK PIECE WEIGHT ........ 1000#
MAXIMUM THICKNESS ................ 0.500"
TOOLING STYLE .................... 36TC
NUMBER OF TOOLS .................. 9
MAXIMUM TOOL DIAMETER ............ 5.00"
MAXIMUM HOLE SIZE M.S..250" ...... 5.00"
.375" ...... 2.75"
.500" ...... 1.00"
AVAILABLE PLASMA CUTTING SYSTEM:
HT2000 (STANDARD), HPR130, HPR260
SLAG COLLECTION .................. DRY
AUTOMATIC SMALL PARTS REMOVAL .... 24" X 60"
STANDARD FEATURES:
HYDRAULIC PUNCHING
FORMING MODE (REVERSES RAM ON PRESSURE)
AUTOMATIC PUNCH LUBRICATION
AUTOMATIC REPOSITIONING
INITIAL SET OF TOOLING CARTRIDGES & ADAPTERS
RAMPAGE!PLASMA
DUST COLLECTOR
REMOTE DIAGNOSTICS SERVICE PACKAGE
HEAVY DUTY DRIVES & WORK CLAMPS MOVE WORK
PIECES UP TO 1,000 LBS.
MATERIAL MOVES IN X DIRECTION
PUNCH AND PLASMA TORCH MOVE IN Y DIRECTION
THIS PREVENTS THE WORK PIECE FROM "WHIPPING"
AND HELPS MAINTAIN ACCURACY ON EVEN THE
HEAVIEST WORK PIECES
MAXIMUM RAPID SPEEDS ARE ACHIEVED IN ALL
WORK PIECE WEIGHTS
FAST, SIMPLE TOOL CHANGER DESIGN
ANY SIZE TOOL FITS ANY STATION UP TO 5.00"
DOUBLE ACTING HYDRAULIC CYLINDER KEEPS PUNCH
FROM "STICKING" IN WORK PIECE
HYDRAULIC CLAMPING & STRIPPING KEEPS MATERIAL
FLAT
PUNCHES ARE HYDRAULICALLY CLAMPED IN THE
CYLINDER TO MAINTAIN PRECISE AND CONSISTENT
ALIGNMENT
TOOLS CAN BE SET UP OFF LINE - WHILE THE
MACHINE IS RUNNING; TOOKING CARTRIDGES ARE
QUICKLY EXCHANGED ON THE X-AXIS RAIL
FAST, EASY SET-UP - SPRINGS HOLD MOST
COMPONENTS IN PLACE WITH FEW FASTENERS
MOST WHITNEY 36TC TOOLING IS AVAILABLE FOR
FAST SHIPMENT
STATE OF THE ART PLASMA CUTTING SYSTEMS FROM
HYPERTHERM
HPR260 OR HPR130 HYPERFORMANCE SYSTEMS
HIGHLY ACCURATE, LASER-LIKE QUALITY
HPR260 PROVIDES INCREDIBLE CUTTING SPEEDS
IN THICK MATERIAL
LONG CONSUMABLE LIFE
VERY ECONOMICAL SYSTEM -LOW OPERATING COSTS
EITHER PROCESS CAN BE USED TO PROCESS
MILD STEEL, STAINLESS STEEL, ALUMINUM
STANDARD AUTOMATED PART REMOVAL
24" X 60" DROP TABLE REMOVED PARTS AUTOMATIC
PART DETECTION SYSTEM ENSURES THAT PARTS
ARE REMOVED
AVERAGE PART REMOVAL TIME OF ONLY 2.5 SECONDS
AN OPTIONAL CONVEYOR BRINGS PARTS TO THE
OPERATOR AS THEY ARE CUT
