WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$26,990 USD
Manufacturer:
WALDEMAR
Model:
AR-23 HYD PINCH PYR
Capacity:
MINIMUM DIAMETER

Specifications

Condition:
new
Stock number:
061758
Standard hp:
5 HP
Flat on flat:
3/4" X 4-5/8" X 6" . 2O"
Bending pressure:
15 TONS
Machine capacity:
MINIMUM DIAMETER
Main shaft diameter:
2.5"
Channel flange in .. 11:
18"
Sch. xxh steel pipe 1-1/4:
16"
Fpm rolling speed (approx.):
0/22
Channel flange out . 3" x 4.1:
18"
Subcategory:
Rolls
Subcategory 2:
Angle bending

Description

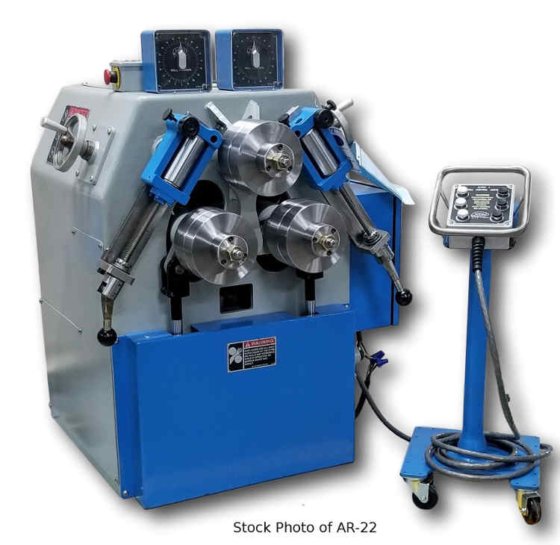

WALDEMAR (NEW) AR-23 HYDRAULIC PINCH PYRAMID
ANGLE BENDING MACHINE
STANDARD HP ...................... 5 HP
BENDING PRESSURE ................. 15 TONS
MAIN SHAFT DIAMETER .............. 2.5"
FPM ROLLING SPEED (APPROX.) ...... 0/22
MACHINE CAPACITY ........... MINIMUM DIAMETER
ANGLE LEG OUT ...... 2" X 2" X 3/8" ..... 26"
ANGLE LEG IN ....... 2" X 2" X 1/4" ..... 22"
FLAT ON FLAT ....... 3/4" X 4-5/8" X 6" . 2O"
FLAT ON EDGE ....... 1/2" X 2-1/2" ...... 20"
SQUARE BAR ......... 1-3/8" ............. 16"
TEE LEG IN ......... 2" X 2" X 1/4" ..... 20"
TEE LEG OUT ........ 2" X 2" X 1/4" ..... 20"
ROUND BAR .......... 1-1/2" ............. 15"
SCH. 40 PIPE ....... 1-1/2" ............. 16"
SCH. 80 PIPE ....... 1-1/2" ............. 16"
SCH. 120 PIPE ...... 1-1/2" ............. 16"
SCH. XXH STEEL PIPE 1-1/4" ............. 16"
ROUND TUBE ......... 2-3/8" X 12 GA ..... 24"
SQUARE TUBE ........ 2" X 11 GA ......... 22"
RECTANGULAR TUBE ... 2" X 1-1/4" X 11 GA 18"
CHANNEL FLANGE OUT . 3" X 4.1# .......... 18"
CHANNEL FLANGE IN .. 11" ................ 18"
