FACCIN ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$89,990 USD
Manufacturer:
FACCIN
Model:
RCMI 110 HYD ANGLE

Specifications

Condition:
new
Stock number:
061746
Fob:
TX
Pipe:
4" SCH 40 .... 48"
Square tube:
3.5" X 5/16"
Angle (leg in):
4" X 1/2"..... 60"
T bar (leg in):
4" X 1/2" .... 48"
Angle (leg out):
4" X 1/2"..... 44"
Beam (hard way):
S4 X 9-1/2#... 80"
T bar (leg out):
4" X 1/2" .... 32"
T bar (leg down):
5" X 1/2" .... 50"
Flat bar (easy way):
8" X 1-3/8"... 50"
Optional accessories:
PRICE ON REQUEST
Rotation speed (inf var) . ft/min:
0-16
Subcategory:
Rolls
Subcategory 2:
Angle bending

Description

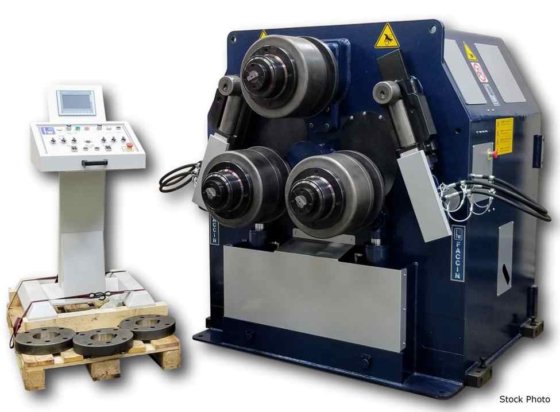

FACCIN (NEW) MODEL RCMI 110 HYDRAULIC ANGLE
BENDING ROLL
MILD STEEL CAPACITIES .... MAX SIZE .... DIA.
FLAT BAR (EASY WAY) ...... 8" X 1-3/8"... 50"
FLAT BAR (HARD WAY) ...... 4" X 1"....... 32"
ROUND BAR ................ 3"............ 32"
SQUARE BAR ............... 2-3/4"........ 32"
ANGLE (LEG OUT) .......... 4" X 1/2"..... 44"
ANGLE (LEG IN) ........... 4" X 1/2"..... 60"
CHANNEL (LEG OUT) ........ C8 X 19#...... 40"
CHANNEL (LEG IN) ......... C8 X 19#...... 60"
CHANNEL (LEG DOWN) ....... C3 X 6#...... 200"
BEAM (EASY WAY) .......... S8 X 23# ..... 40"
BEAM (EASY WAY) .......... W5 X 16# ..... 60"
BEAM (HARD WAY) .......... S4 X 9-1/2#... 80"
T BAR (LEG OUT) .......... 4" X 1/2" .... 32"
T BAR (LEG IN) ........... 4" X 1/2" .... 48"
T BAR (LEG DOWN) ......... 5" X 1/2" .... 50"
PIPE ..................... 4" SCH 40 .... 48"
SQUARE TUBE .............. 3.5" X 5/16"
MAIN TECHNICAL FEATURES
SECTION MODULUS .......... IN3 ......... 3.36
SHAFT DIAMETER ........... INS ......... 4.33
ROLLS DIAMETER ........... INS ......... 13.8
ROTATION SPEED (INF VAR) . FT/MIN ...... 0-16
INSTALLED POWER .......... HP .......... 20
STANDARD FEATURES
- HYDRAULIC ADJUSTMENT OF LOWER ROLLS
- 3 INDEPENDANTLY MOTORIZED ROLLS
(3 HYDRAULIC MOTORS + 3 GEARBOXES)
- LATERAL GUIDE ROLLS INDEPENDENTLY ADJUST-
ABLE IN 6 DIRECTIONS
- AUTOMATIC COMPENSATION OF ROLLS SPEED
- COMPLETE SET OF MODULAR RINGS
- SET OF WRENCHES
- LOW VOLTAGE CONTROLS
- SAFETY GUARD CABLE FOR IMMEDIATE STOP
- INSTRUCTION & MAINTENANCE MANUAL
ACCESSORIES INCLUDED
- 2 DIGITAL READOUTS FOR ROLLS POSITION
- HYDRAULIC VERTICAL SETTING OF GUIDE ROLLS
- HYDRAULIC IN-OUT SETTING OF GUIDE ROLLS
- INFINITELY VARIABLE SPEED
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
DIGITAL READOUT FOR ROTATION ............ POR
HYDRAULIC ARM FOR H, I AND U SECTIONS
ROLLED OVER X-X AXIS .................. POR
ARM GUIDE ROLLS FOR H BEAMS THE HARD WAY POR
ARM GUIDE ROLLS FOR I BEAMS THE HARD WAY POR
ARM GUIDE ROLLS FOR CHANNELS THE HARD WAY POR
SPACERS FOR ROLLING BEAMS THE EASY WAY .. POR
PIPE DIES (PER SIZE UP TO 4") ........... POR
PIPE DIES (PER SIZE 4-1/2" TO 8") ....... POR
FOB: TX
