Top Seller
BAILEIGH ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$16,995 USD
Manufacturer:
Baileigh
Model:
R-H45
Capacity:
SIZE . MIN. DIA.

Specifications

Condition:
new
Stock number:
061243
Motor:
3 HP
Pinch:
SINGLE
Capacity:
SIZE . MIN. DIA.
Shaft speed:
12 RPM
Driven rolls:
3
Solid square:
1.375"..... 28"
Shaft diameter:
1.772"
Digital readout:
YES
Roll adjustment:
HYDRAULIC
Power requirement:
220 V, 1 PHASE
Roll diameter - lower:
5.827"
Roll diameter - upper:
5.827"
Shaft center distance:
9.562"
Flat bar easy way (.75") . 4:
28"
Flat bar hard way (.375"). 3.25:
28"
Subcategory:
Rolls
Subcategory 2:
Angle bending

Description

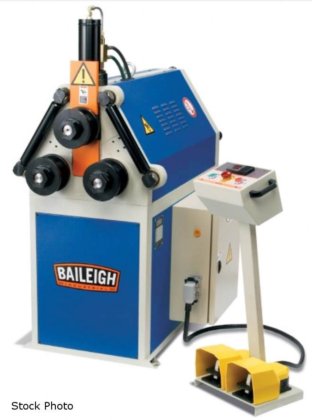

BAILEIGH (NEW) MODEL R-H45 ROLL BENDER
CAPACITY ................... SIZE . MIN. DIA.
- PIPE (SCH 40) ............ 2" ........ 48"
- ROUND TUBE (.083") ....... 2.75" ..... 60"
- SQUARE TUBE (.12") ....... 2" ........ 51"
- ANGLE IRON (.25") ........ 2" ........ 28"
- SOLID SQUARE ............. 1.375"..... 28"
- SOLID ROUND .............. 1.5" ...... 28"
- FLAT BAR EASY WAY (.75") . 4" ........ 28"
- FLAT BAR HARD WAY (.375"). 3.25" ..... 28"
ROLL ADJUSTMENT ............ HYDRAULIC
PINCH ...................... SINGLE
SHAFT DIAMETER ............. 1.772"
ROLL DIAMETER - UPPER ...... 5.827"
ROLL DIAMETER - LOWER ...... 5.827"
SHAFT CENTER DISTANCE ...... 9.562"
DRIVEN ROLLS ............... 3
DIGITAL READOUT ............ YES
SHAFT SPEED ................ 12 RPM
MOTOR ...................... 3 HP
POWER REQUIREMENT .......... 220 V, 1 PHASE
HYDRAULIC ADJUSTMENT OF TOP ROLL
INVERTER DRIVEN
VARIABLE SPEED
OVERLOAD PROTECTED
HORIZONTAL AND VERTICAL BENDING
HARDENED STANDARD ROLLS
FOOT PEDAL CONTROLLED
DIGITAL READOUT
MANY OPTIONAL TOOLING SETS AVAILABLE
