Top Seller
BAILEIGH ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$20,995 USD
Manufacturer:
Baileigh
Model:
R-H55
Capacity:
SIZE . MIN. DIA.

Specifications

Condition:
new
Stock number:
061244
Motor:
5 HP
Pinch:
SINGLE
Capacity:
SIZE . MIN. DIA.
Shaft speed:
11 RPM
Driven rolls:
3
Shaft diameter:
2.165"
Digital readout:
YES
Roll adjustment:
HYDRAULIC
Power requirement:
220 V, 3 PHASE
Roll diameter - lower:
6.693"
Roll diameter - upper:
6.693"
Shaft center distance:
11.875"
Flat bar easy way (.75") . 5:
28"
Flat bar hard way (.675"). 3.5:
32"
Subcategory:
Rolls
Subcategory 2:
Angle bending

Description

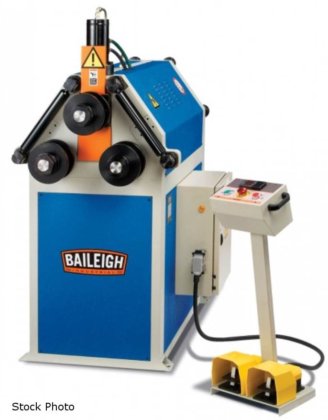

BAILEIGH (NEW) MODEL R-H55 ROLL BENDER
CAPACITY ................... SIZE . MIN. DIA.
- PIPE (SCH 40) ............ 2.5" ...... 40"
- ROUND TUBE (.083") ....... 4" ........ 72"
- SQUARE TUBE (.083") ...... 2.75" ..... 54"
- ANGLE IRON (.25") ........ 3" ........ 36"
- SOLID SQUARE ............. 1.75"...... 28"
- SOLID ROUND .............. 2" ........ 28"
- FLAT BAR EASY WAY (.75") . 5" ........ 28"
- FLAT BAR HARD WAY (.675"). 3.5" ...... 32"
ROLL ADJUSTMENT ............ HYDRAULIC
PINCH ...................... SINGLE
SHAFT DIAMETER ............. 2.165"
ROLL DIAMETER - UPPER ...... 6.693"
ROLL DIAMETER - LOWER ...... 6.693"
SHAFT CENTER DISTANCE ...... 11.875"
DRIVEN ROLLS ............... 3
DIGITAL READOUT ............ YES
SHAFT SPEED ................ 11 RPM
MOTOR ...................... 5 HP
POWER REQUIREMENT .......... 220 V, 3 PHASE
HYDRAULIC ADJUSTMENT OF TOP ROLL
HORIZONTAL AND VERTICAL BENDING
HARDENED STANDARD ROLLS
FOOT PEDAL CONTROLLED
DIGITAL READOUT
MANY OPTIONAL TOOLING SETS AVAILABLE
