Top Seller
BAILEIGH ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$43,695 USD
Manufacturer:
Baileigh
Model:
R-H85
Capacity:
SIZE . MIN. DIA.

Specifications

Condition:
new
Stock number:
061479
Motor:
10.5 HP
Pinch:
DOUBLE
Speed:
5.2 RPM
Capacity:
SIZE . MIN. DIA.
Solid round:
2.375" .... 40"
Driven rolls:
3
Shaft diameter:
3.15"
Digital readout:
YES
Roll adjustment:
HYDRAULIC
Angle iron (.25"):
3.375" .... 68"
Power requirement:
220 V, 3 PHASE
Roll diameter - lower:
9.65"
Roll diameter - upper:
9.65"
Flat bar easy way (1") ... 5:
24"
Flat bar hard way (.787"). 4:
83"
Subcategory:
Rolls
Subcategory 2:
Angle bending

Description

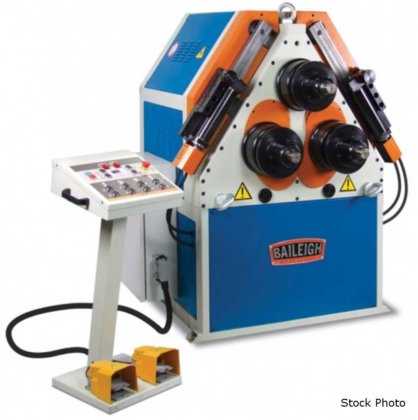

BAILEIGH (NEW) MODEL R-H85 ROLL BENDER
CAPACITY ................... SIZE . MIN. DIA.
- PIPE (SCH 40) ............ 3" ........ 63"
- ROUND TUBE (.12") ........ 4" ........ 118"
- SQUARE TUBE (.157") ...... 2.75" ..... 118"
- ANGLE IRON (.25") ........ 3.375" .... 68"
- SOLID SQUARE ............. 2" ........ 46"
- SOLID ROUND .............. 2.375" .... 40"
- FLAT BAR EASY WAY (1") ... 5" ........ 24"
- FLAT BAR HARD WAY (.787"). 4" ........ 83"
ROLL ADJUSTMENT ............ HYDRAULIC
PINCH ...................... DOUBLE
SHAFT DIAMETER ............. 3.15"
ROLL DIAMETER - UPPER ...... 9.65"
ROLL DIAMETER - LOWER ...... 9.65"
DRIVEN ROLLS ............... 3
DIGITAL READOUT ............ YES
SPEED ...................... 5.2 RPM
MOTOR ...................... 10.5 HP
POWER REQUIREMENT .......... 220 V, 3 PHASE
OVERLOAD PROTECTED
HYDRAULIC DRIVE
HYDRAULIC LATERAL ANGLE GUIDES
HORIZONTAL AND VERTICAL BENDING
HARDENED STANDARD ROLLS
FOOT PEDAL CONTROLLED
MANY OPTIONAL TOOLING SETS AVAILABLE
