Top Seller
BAILEIGH ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$5,795 USD
Manufacturer:
Baileigh
Model:
R-M40
Capacity:
SIZE . MIN. DIA.

Specifications

Condition:
new
Stock number:
061241
Motor:
1.5 HP
Pinch:
SINGLE
Speeds:
10.6-21.2 RPM
Capacity:
SIZE . MIN. DIA.
Solid round:
1.375" .. 24"
Driven rolls:
2
Solid square:
1.25" ... 20"
Pipe (sch 40):
1.5" .... 28"
Shaft diameter:
1.181"
Roll adjustment:
MANUAL
Power requirement:
220 V, 1 PHASE
Angle iron (.1875"):
1.5" .... 22"
Square tube (.083"):
1.5" .... 39"
Roll diameter - lower:
5.118"
Roll diameter - upper:
5.118"
Shaft center distance:
10.88"
Flat bar easy way (.5") .. 3:
15.75"
Subcategory:
Rolls
Subcategory 2:
Angle bending

Description

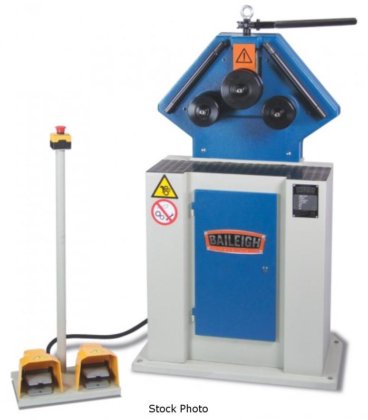

BAILEIGH (NEW) MODEL R-M40 ROLL BENDER
CAPACITY ................... SIZE . MIN. DIA.
- PIPE (SCH 40) ............ 1.5" .... 28"
- ROUND TUBE (.078") ....... 2" ...... 27.55"
- SQUARE TUBE (.083") ...... 1.5" .... 39"
- ANGLE IRON (.1875") ...... 1.5" .... 22"
- SOLID SQUARE ............. 1.25" ... 20"
- SOLID ROUND .............. 1.375" .. 24"
- FLAT BAR EASY WAY (.5") .. 3" ...... 15.75"
- FLAT BAR HARD WAY (.375) . 2.25" ... 20"
ROLL ADJUSTMENT ............ MANUAL
PINCH ...................... SINGLE
SHAFT DIAMETER ............. 1.181"
ROLL DIAMETER - UPPER ...... 5.118"
ROLL DIAMETER - LOWER ...... 5.118"
SHAFT CENTER DISTANCE ...... 10.88"
DRIVEN ROLLS ............... 2
SPEEDS ..................... 10.6-21.2 RPM
MOTOR ...................... 1.5 HP
POWER REQUIREMENT .......... 220 V, 1 PHASE
MANUAL ADJUSTMENT OF TOP ROLL VIA RACHET
INVERTER DRIVEN
VARIABLE SPEED
OVERLOAD PROTECTED
HARDENED STANDARD ROLLS
HEAD TILTS FOR VERTICAL & HORIZONTAL BENDING
FOOT PEDAL CONTROLLED
MANY OPTIONAL TOOLING SETS AVAILABLE
