Top Seller
BAILEIGH ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$7,795 USD
Manufacturer:
Baileigh
Model:
R-M55
Capacity:
SIZE . MIN. DIA.

Specifications

Condition:
new
Stock number:
061242
Motor:
1.5 HP
Pinch:
SINGLE
Speeds:
13.6-27.2 RPM
Capacity:
SIZE . MIN. DIA.
Solid round:
1.375" .. 20"
Driven rolls:
2
Solid square:
1.375" .. 20"
Shaft diameter:
1.968"
Roll adjustment:
MANUAL
Power requirement:
220 V, 1 PHASE
Round tube (.083"):
2.75" ... 60"
Roll diameter - lower:
5.827"
Roll diameter - upper:
5.827"
Shaft center distance:
13.12"
Flat bar easy way (.5") .. 4:
20"
Subcategory:
Rolls
Subcategory 2:
Angle bending

Description

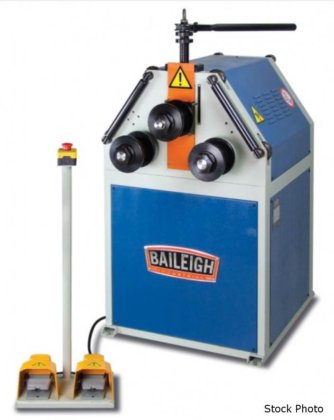

BAILEIGH (NEW) MODEL R-M55 ROLL BENDER
CAPACITY ................... SIZE . MIN. DIA.
- PIPE (SCH 40) ............ 2" ...... 40"
- ROUND TUBE (.083") ....... 2.75" ... 60"
- SQUARE TUBE (.083") ...... 2" ...... 48"
- ANGLE IRON (.25") ........ 2" ...... 28"
- SOLID SQUARE ............. 1.375" .. 20"
- SOLID ROUND .............. 1.375" .. 20"
- FLAT BAR EASY WAY (.5") .. 4" ...... 20"
- FLAT BAR HARD WAY (.375) . 2.25" ... 20"
ROLL ADJUSTMENT ............ MANUAL
PINCH ...................... SINGLE
SHAFT DIAMETER ............. 1.968"
ROLL DIAMETER - UPPER ...... 5.827"
ROLL DIAMETER - LOWER ...... 5.827"
SHAFT CENTER DISTANCE ...... 13.12"
DRIVEN ROLLS ............... 2
SPEEDS ..................... 13.6-27.2 RPM
MOTOR ...................... 1.5 HP
POWER REQUIREMENT .......... 220 V, 1 PHASE
MANUAL ADJUSTMENT OF TOP ROLL
INVERTER DRIVEN
VARIABLE SPEED
OVERLOAD PROTECTED
HARDENED STANDARD ROLLS
VERTICAL & HORIZONTAL BENDING
FOOT PEDAL CONTROLLED
DIGITAL READOUT
MANY OPTIONAL TOOLING SETS AVAILABLE
