ERCOLINA CE40H3 ANGLE ROLL in
Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
Ercolina
Model:
CE40H3 ANGLE ROLL

Specifications

Condition:
new
Stock number:
061037
Subcategory:
Rolls
Subcategory 2:
Angle bending

Description

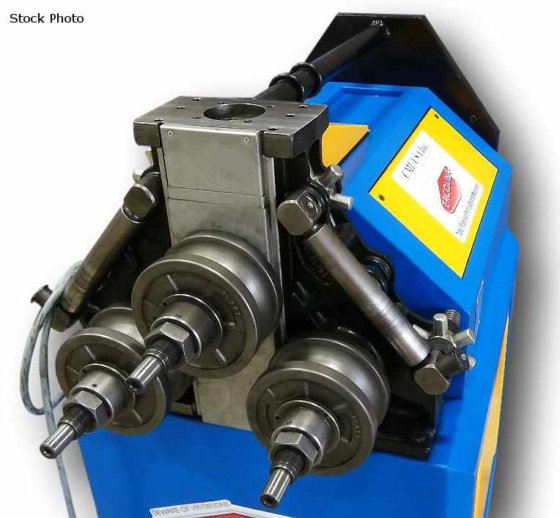

ERCOLINA (NEW) MODEL CE40H3 ANGLE ROLL
ROLL SHAFT DIAMETER ......... 40 MM
CENTER ROLL POSITIONING ..... HYD. 10 TONS
PIPE CAPACITY ............... 2" SCH. 40
ANGLE CAPACITY .............. 2" X 2" X 1/4"
UNIVERSAL TOOLING INCLUDED .. 6-5/8" O.DIA.
PROGRAMMING ................. NC - TOUCHPAD
NUMBER OF PROGRAMS .......... 8
SHAFT SPEED ................. 10 RPM
DISTANCE BETWEEN SHAFTS ..... 10-5/8"
DRIVE MOTOR (INTO PLANETARY) 1-1/2 HP
OPERATING POSITION .......... HORIZ. OR VERT.
CONTROL TOWER ............... YES
OPERATING VOLTAGE ........... 220/440 V 3 PH
FEATURES:
- BENDING SPEEDS 20% FASTER THAN COMPETITIVE
MACHINES
- UNIVERSAL TOOLING SET
- FORGED ROLL SHAFTS PRECISION GROUND AND
FITTED FOR MAXIMUM PERFORMANCE AND MINIMAL
DEFLECTION
- HEAVY DUTY STRUCTURE AND RIGID COMPONENTS
FOR HIGH SECTION MODULUS RATINGS
- REINFORCED ENGINEERED MAINFRAME DESIGN
PROVEN TO OUTPERFORM COMPETITIVE MODELS
- PATENTED BY ERCOLINA SIMULTANEOUS DOWNFEED
AND ROLL MOVEMENT TO MINIMIZE DEFORMATION
