Top Seller
ERCOLINA ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$13,700 USD
Manufacturer:
Ercolina
Model:
CE40MR3 ANGLE ROLL
Capacity:
2" SCH. 40

Specifications

Condition:
new
Stock number:
061025
Shaft speed:
10 RPM
Control tower:
YES
Pipe capacity:
2" SCH. 40
Angle capacity:
2" X 2" X 1/4"
Operating voltage:
220/440 V 3 PH
Options available:
PRICE ON REQUEST
Operating position:
HORIZ. OR VERT.
Roll shaft diameter:
40 MM
Center roll positioning:
MANUAL WITH
Distance between shafts:
10-5/8"
Subcategory:
Rolls
Subcategory 2:
Angle bending

Description

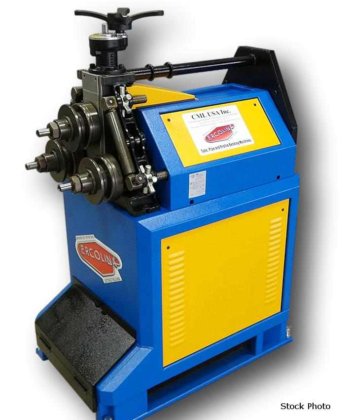

ERCOLINA (NEW) MODEL CE40MR3 ANGLE ROLL
ROLL SHAFT DIAMETER ......... 40 MM
CENTER ROLL POSITIONING ..... MANUAL WITH
............. PATENTED TORQUE MULTIPLIER
PIPE CAPACITY ............... 2" SCH. 40
ANGLE CAPACITY .............. 2" X 2" X 1/4"
UNIVERSAL TOOLING INCLUDED .. 6-5/8" O.DIA.
SHAFT SPEED ................. 10 RPM
DISTANCE BETWEEN SHAFTS ..... 10-5/8"
DRIVE MOTOR (INTO PLANETARY) 1-1/2 HP
OPERATING POSITION .......... HORIZ. OR VERT.
CONTROL TOWER ............... YES
OPERATING VOLTAGE ........... 220/440 V 3 PH
FEATURES:
- BENDING SPEEDS 20% FASTER THAN COMPETITIVE
MACHINES
- UNIVERSAL TOOLING SET
- FORGED ROLL SHAFTS PRECISION GROUND AND
FITTED FOR MAXIMUM PERFORMANCE AND MINIMAL
DEFLECTION
- HEAVY DUTY STRUCTURE AND RIGID COMPONENTS
FOR HIGH SECTION MODULUS RATINGS
- REINFORCED ENGINEERED MAINFRAME DESIGN
PROVEN TO OUTPERFORM COMPETITIVE MODELS
- PATENTED BY ERCOLINA SIMULTANEOUS DOWNFEED
AND ROLL MOVEMENT TO MINIMIZE DEFORMATION
- PROGRAMMABLE TOUCH PAD CONTROLS WITH
DIGITAL CENTER ROLL POSITIONING DISPLAY
- REMOTE PENDENT WITH LOW VOLTAGE CONTROLS
AND FOOT PEDAL SWITCH
- THREADED ROLL SHAFTS WITH MICROMETRIC
FLANGE ADJUSTMENT HELPS ELIMINATE SPACER
USAGE
- INLINE DIRECT DRIVE ROLL SHAFT SYSTEM
- 1 YEAR LIMITED WARRANTY
OPTIONS AVAILABLE .......... PRICE ON REQUEST
ANTI-TWIST CORRECTION SYSTEM FOR
ANGLE IRON "LEG IN" APPLICATIONS . POR
SINGLE PHASE ....................... POR
