ERCOLINA ROLLS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Ercolina
Model:
CE70H3 W/MANUAL 3 AXIS
Capacity:
3" SCH. 40

Specifications

Condition:
new
Stock number:
061293
Lower (2):
1.5 HP
Upper (1):
1.5 HP
Programming:
NC - TOUCHPAD
Control tower:
YES WITH JOYSTICK
Hydraulic pump:
2.6 HP
Section modulus:
35 CM3
Roll shaft speed:
8 RPM
Twist correction:
MECHANICAL
Max pipe capacity:
3" SCH. 40
Operating voltage:
220-440V 3 PHASE
Universal tooling:
INCLUDED-9.5" OD
Max angle capacity:
3" X 3" X 3/8"
Number of programs:
8
Operating position:
HORIZ. OR VERT.
Roll shaft diameter:
70 MM
Subcategory:
Rolls
Subcategory 2:
Angle bending

Description

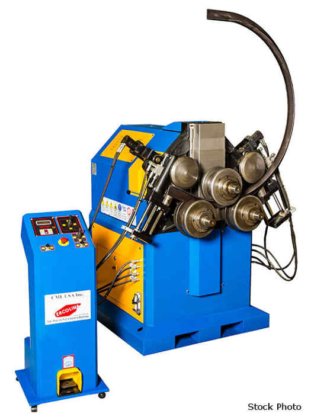

ERCOLINA (NEW) MODEL CE70 ANGLE ROLL WITH
MANUAL 3 AXIS TWIST
ROLL SHAFT DIAMETER ....... 70 MM
CENTER ROLL POSITIONING ... 16 TONS HYDRAULIC
MAX PIPE CAPACITY ......... 3" SCH. 40
MAX ANGLE CAPACITY ........ 3" X 3" X 3/8"
UNIVERSAL TOOLING ......... INCLUDED-9.5" OD
PROGRAMMING ............... NC - TOUCHPAD
NUMBER OF PROGRAMS ........ 8
ROLL SHAFT SPEED .......... 8 RPM
OPERATING POSITION ........ HORIZ. OR VERT.
TWIST CORRECTION .......... MECHANICAL
CONTROL TOWER ............. YES WITH JOYSTICK
OPERATING VOLTAGE ......... 220-440V 3 PHASE
DRIVE MOTOR (INTO PLANETARY)
- UPPER (1) ............... 1.5 HP
- LOWER (2) ............... 1.5 HP
HYDRAULIC PUMP ............ 2.6 HP
DISTANCE BETWEEN SHAFTS ... 15"
SECTION MODULUS ........... 35 CM3
FEATURES:
- BENDING SPEEDS 20% FASTER THAN COMPETITIVE
MACHINES
- FORGED ROLL SHAFTS PRECISION GROUND AND
FITTED FOR MAX PERFORMANCE & MIN DEFLECTION
- HEAVY DUTY STRUCTURE AND RIGID COMPONENTS
FOR HIGH SECTION MODULUS RATINGS
- REINFORCED ENGINEERED MAINFRAME DESIGN
PROVEN TO OUTPERFORM COMPETITIVE MODELS
- PATENTED BY ERCOLINA SIMULTANEOUS DOWNFEED
AND ROLL MOVEMENT MINIMIZES DEFORMATION
- PROGRAMMABLE TOUCHPAD CONTROLS WITH DIGITAL
CENTER ROLL POSITIONING DISPLAY
- UNIVERSAL TOOLING SET INCLUDED
- MEMORY STORAGE WITH 8 PROGRAMS
- REMOTE CONTROL PENDENT WITH LOW VOLTAGE
CONTROLS AND FOOT PEDAL SWITCH
- THREADED ROLL SHAFTS WITH MICROMETRIC
FLANGE ADJUSTMENT HELPS ELIMINATE SPACER
USAGE
- INLINE DIRECT DRIVE ROLL SHAFT SYSTEM
- 3-AXIS HYDRAULIC ANTI-TWIST SYSTEM FOR
ANGLE IRON "LEG IN" APPLICATIONS
- 1 YEAR LIMITED WARRANTY
