WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$18,006 USD
Manufacturer:
WALDEMAR
Model:
AR-22

Specifications

Condition:
new
Stock number:
061290
Drive type:
ALL HYDRAULIC
Section modulus:
0.25
Bending pressure:
15 U.S. TONS
Rolling diameter:
7"
Angle bending cap:
2 X 2 X 1/4"
Guide roll adjust:
MECHANICAL
Subcategory:
Rolls
Subcategory 2:
Angle bending

Description

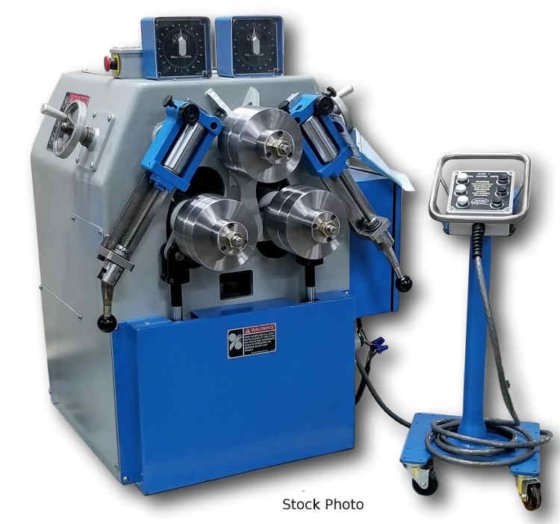

(NEW) MODEL AR-22 HYDRAULIC PINCH PYRAMID
ANGLE BENDING ROLL
ANGLE BENDING CAP,,,,,,, 2 X 2 X 1/4"
STANDARD HORSEPOWER,,,,, 5
ROLLING DIAMETER,,,,,,,, 7"
BENDING PRESSURE,,,,,,,, 15 U.S. TONS
MAIN SHAFT DIAMETER,,,,, 2" NOMINAL
SECTION MODULUS,,,,,,,,, 0.25
DRIVE TYPE,,,,,,,,,,,,,, ALL HYDRAULIC
GUIDE ROLL ADJUST,,,,,,, MECHANICAL
CAPACITY OF MACHINE MIN. DIA.
ANGLE LEG OUT 2" X 2" X 1/2" 20"
ANGLE LEG IN 2" X 2" X 1/4" 24"
FLAT ON FLAT 1/2" X 6" 16"
FLAT ON EDGE 3/8" X 2" 16"
SQUARE BAR 1-1/4"
TEE, LEG IN 2" X 2" X 1/4" 24"
TEE, LEG OUT 2" X 2" X 1/4" 28"
ROUND BAR 1-1/4" 16"
SCHEDULE 40 PIPE 1-1/2" 16"
SCHUDULE 80 PIPE 1-1/4" 16"
CHANNEL FLANGE OUT 3" X 1.4# 20"
CHANNEL FLANGE IN 3" X 1.4# 24"
I-BEAM ON FLANGE 3" X 7.5 36"
HEAT TREATED CHROMIUM/MOLYBDENUM ARBORS/SHAFT
ROLLING ELEMENT TYPE BEARINGS
INFINITELY VARI FROM 0 - 23 MAX
STANDARD DIES ARE ACCURATELY MACHINED AND
THROUGH HARDENED FOR LONG LIVE
PUSH BUTTON TYPE CONTROLS MOUNTED ON CONTROL
PENDANT
ROLL POSITION INDICATORS ARE OF MECHANICAL
DIGITAL TYPE, AS STANDARD
GUIDE ROLLS ARE THROUGH HARDENED STEEL
OPERATING POSITION CAN BE OPERATED IN EITHER
HORIZONTAL OR VERTICAL POSITION
HYDRAULIC SYSTEM IS QUIET DESIGN AND USES
STATE-OF-THE=AIR TYPE COMPONENTS WITH THE
RESERVOIR ON INTEGRAL PART OF MACH FRAME
LUBRICATION ANNUALLY AT MOST POINTS IS
ADEQUATE FOR NORMAL OPERATING DUTY
ELECTRICAL SYSTEM IS HOUSED IN NEMA 12 TYPE
ENCLOSURE
MACHINE FUNCTIONS ARE CONTROLLED BY MANUAL
HYDRAULIC VALVE LEVER FOR ROLL ADJUSTMENT
AND DUAL FOOT PEDAL FOR ROLL ROTATION
