FACCIN ROLLS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
FACCIN
Model:
BIKO B4 2020 4 ROLL

Specifications

Condition:
new
Year:
2015
Stock number:
061768
By pressing:
100%
Roll material:
HIGH RESISTANCE
Rolling speed:
5 M/MIN (16 FPM)
Number of rolls:
4
Hydraulic motors:
1
Rolls face length:
80 3/4"
Diameter of top roll:
8.071"
By continuous rolling:
60%
Powered driving rolls:
2
Diameter of bottom roll:
7.087"
With ferrule having diameter:
40 1/2" ID
With ferrule having diameter 2:
10 1/2" ID
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

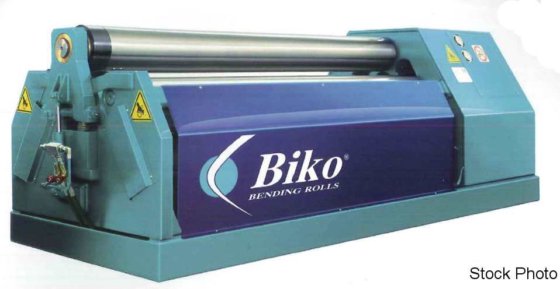

FACCIN (NEW) MODEL BIKO B4 2020 4 ROLL PLATE
ROLL
MAXIMUM ROLLING CAPACITY (COLD) .. 0.315"
MAX. PREBENDING CAPACITY (COLD) .. 0.236"
WITH FERRULE HAVING DIAMETER ..... 40 1/2" ID
AND USING MILD STEEL MATERIAL (260 N/MM2)
MAXIMUM ROLLING CAPACITY (COLD) .. 0.236"
MAX. PREBENDING CAPACITY (COLD) .. 0.157"
WITH FERRULE HAVING DIAMETER ..... 10 1/2" ID
AND USING MILD STEEL MATERIAL (260 N/MM2)
CONE CAPACITY % OF PREBENDING THICKNESS
BY CONTINUOUS ROLLING .......... 60%
BY PRESSING .................... 100%
ROLLS FACE LENGTH ................ 80 3/4"
NUMBER OF ROLLS .................. 4
DIAMETER OF TOP ROLL ............. 8.071"
DIAMETER OF BOTTOM ROLL .......... 7.087"
POWERED DRIVING ROLLS ............ 2
HYDRAULIC MOTORS ................. 1
ROLLING SPEED .............. 5 M/MIN (16 FPM)
ROLLS MOVEMENT ADJUSTMENT .. HYDRAULIC
ROLL MATERIAL .............. HIGH RESISTANCE
ALLOY FORGED STEEL
INSTALLED POWER (ENERGY SAVING) .. 7.5 HP
POWER SUPPLY .... 240 OR 480V, 60 HZ, 3 PHASE
ACCESSORIES:
AUTOMATIC HYDRAULIC ROLL BALANCING SYSTEM
HYDRAULIC DROP ARM
HYDRAULIC CONTROL PANEL CENTRALIZED ON
SWINGING CONSOLE WITH DIGITAL READOUTS
HARDENED ROLLS
CONICAL BENDING DEVICE
MAX PRESSURE RELIEF VALVE
COMPONENTS CERTIFIED ISO 9000
USER HANDBOOK
