Top Seller
FACCIN ROLLS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
FACCIN
Model:
4HEL1617 PLATE ROLL

Specifications

Condition:
new
Stock number:
061711
Plate width:
60"
Rolling power:
7 1/2HP
Prebend 5 x dia:
236"
Rolling 5 x dia:
276"
Prebend 1.4 x dia:
220"
Top roll diameter:
6.69"
Pinch roll diameter:
6.50"
Side rolls diameter:
5.31"
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

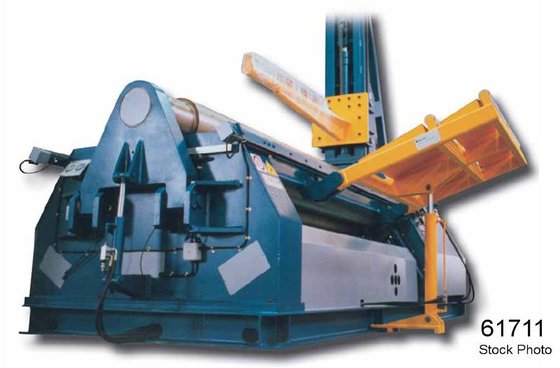

(NEW) FACCIN MDL 4HEL1617 4 ROLL SYNCHRONIZED
PLATE BENDING ROLL
PLATE WIDTH,,,,,,,,,,,,,,,,, 60"
ROLLING 5 X DIA,,,,,,,,,,,,, .276"
PREBEND 5 X DIA,,,,,,,,,,,,, .236"
PREBEND 1.4 X DIA,,,,,,,,,,, .220"
TOP ROLL DIAMETER,,,,,,,,,,,, 6.69"
PINCH ROLL DIAMETER ,,,,,,,,, 6.50"
SIDE ROLLS DIAMETER ,,,,,,,,, 5.31"
ROLLING POWER,,,,,,,,,,,,,,, 7 1/2HP
STANDARD CONFIGURATION:
--4 ROLL DOUBLE PINCH ALLOWS PREBEND AND ROLL
ROLLING IN A SINGLE PASS
--HYDRAULIC ADJUSTMENT OF PINCHING AND
LATERAL ROLLS INSIDE OF DUAL LINNEAR SLIDES
--TOP AND PINCHING ROLL DRIVEN BY HYD MOTORS
AND GEARBOXES
--PGS CLASSIC NC CONTROL BASED ON SIEMENS PLC
WITH 100 JOB MEMORY (28 STEPS PER JOB)
--ELECTRONIC BALANCING SYSTEM (EPS)WITHIN
.008 ANYWHERE IN STROKE
--NORMALIZED AND HARDENED & STRESS RELEIVED
ROLLS
--HYDRAULICALLY DROP END
--CENTRAL CONTROL CONSOLE
--MCS BEARING SYSTEM 4 BEARINGS PER ROLL
--CENTRALIZED LUBRICATION SYSTEM
--SAFETY GUARD CABLE AROUND THE MACHINE
--ISO 9000 CERTIFIED COMPONANTS
--CONE BENDING ATTACHMENT
