FACCIN ROLLS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
FACCIN
Model:
DP3 1628 PLATE ROLL

Specifications

Condition:
new
Stock number:
061542
Motor:
20 HP
Deliery:
DDP EASTERN PORT, USA
Controls:
HYDRAULIC
Balancing:
HYDRAULIC
Rotation speed:
16' P/MN
Max plate length:
5'
Top roll diameter:
11.22"
Mcs bearing system:
FOUR BEARINGS PER ROLL
Lower roll diameters:
10.43"
Distance between housing:
5'2"
With pre-bending,, 0.508:
14-3/4" ID
With pre-bending,, 0.591:
14-3/4" ID
With pre-bending,, 0.677:
56-1/4" ID
With pre-bending,, 0.787:
56-1/4" ID
With pre-bending,, 0.984:
56-1/4" ID
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

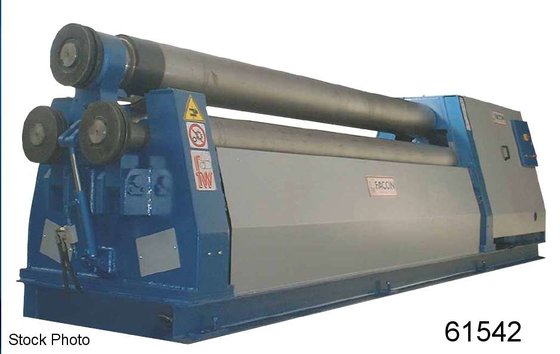

FACCIN (NEW) MDL DP3 1628 DOUBLE PINCH
PLATE ROLL
MAX PLATE LENGTH,,,,,,,,,,,,,,,,,, 5'
DISTANCE BETWEEN HOUSING,,,,,,,,,, 5'2"
TOP ROLL DIAMETER,,,,,,,,,,,,,,,,, 11.22"
LOWER ROLL DIAMETERS,,,,,,,,,,,,,, 10.43"
DRIVEN ROLLS (HYDRAULIC MOTORS),,, 3
ROTATION SPEED,,,,,,,,,,,,,,,,,,,, 16' P/MN
MOTOR,,,,,,,,,,,,,,,,,,,,,,,,,,,,, 20 HP
CONTROLS,,,,,,,,,,,,,,,,,,,,,,,,,, HYDRAULIC
BALANCING,,,,,,,,,,,,,,,,,,,,,,,,, HYDRAULIC
FULL LENGTH BENDING CAPACITIES:
(based on yield point of 36,000 psi)
ROLLING ONLY,,,,,, 1.024",,,,,,,,, 56-1/4" ID
WITH PRE-BENDING,, 0.787",,,,,,,,, 56-1/4" ID
ROLLING ONLY,,,,,, 0.768",,,,,,,,, 14-3/4" ID
WITH PRE-BENDING,, 0.591",,,,,,,,, 14-3/4" ID
FULL LENGTH BENDING CAPACITIES:
(based on yield point of 52,000 psi)
ROLLING ONLY,,,,,, 0.881",,,,,,,,, 56-1/4" ID
WITH PRE-BENDING,, 0.677",,,,,,,,, 56-1/4" ID
ROLLING ONLY,,,,,, 0.660",,,,,,,,, 14-3/4" ID
WITH PRE-BENDING,, 0.508",,,,,,,,, 14-3/4" ID
HALF LENGTH BENDING CAPACITIES:
(based on yield point of 36,000 psi)
ROLLING ONLY,,,,,, 1.280",,,,,,,,, 56-1/4" ID
WITH PRE-BENDING,, 0.984",,,,,,,,, 56-1/4" ID
STANDARD FEATURES:
3 ROLL DOUBLE INITIAL PINCH ALLOWS PREBENDING
AND ROLLING WITHOUR REMOVAL OF PLATE
HYDRAULIC ADJUSTMENT OF LOWER ROLLS INSIDE
DUAL LINEAR SLIDES
ALL ROLLS DRIVEN BY INDEPENDENT HYDRAULIC
MOTORS AND GEARBOXES
HYDRAULIC BALANCING
NORMALIZED, HARDENED AND STRESS RELIEVED
ROLL FORGINGS
MCS BEARING SYSTEM: FOUR BEARINGS PER ROLL
OFFER UNEQUALLED SUPPORT, EVEN DURING OFFSET
(CONE ROLLING) OPERATION
DIGITAL READOUTS ASSIST IN ACCURATE
REPETITION OF ROLLING PROCESS
HYDRAULIC DROP END FOR REMOVAL OF FINISHED
FERRULE
ISO 9000 CERTIFIED COMPONENTS
SAFETY CABLE AROUND MACHINE (WITH MICRO
SWITCH FOR IMMEDIATE MOTION STOP)
CENTRAL OPERATOR CONSOLE (ON SWINGING CONTROL
ARM) WITH ALL CONTROLS AND READOUTS CONE
BENDING ATTACHMENT
EXTENDED SHAFTS FOR SECTION BENDING TOOLING
OPTIONAL EQUIPMENT:
SECTION BENDING DEVICE,,,,,,,,,,,,,,, POR
POLISHED ROLLS (FOR PREFINISHED
MATERIALS,,,,,,,,,,,,,,,,,,,,,,,,,,, POR
OVERHEAD SUPPORT,,,,,,,,,,,,,,,,,,,,, POR
SIDE SUPPORT,,,,,,,,,,,,,,,,,,,,,,,,, POR
HEAT EXCHANGER,,,,,,,,,,,,,,,,,,,,,,, POR
DELIERY: DDP EASTERN PORT, USA
150-180 DAYS FROM DATE OF ORDER
