Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
FACCIN
Model:
4HEL 252 PLATE ROLL

Specifications

Condition:
new
Stock number:
061087
Category:
Machine Tools equipment in United States
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

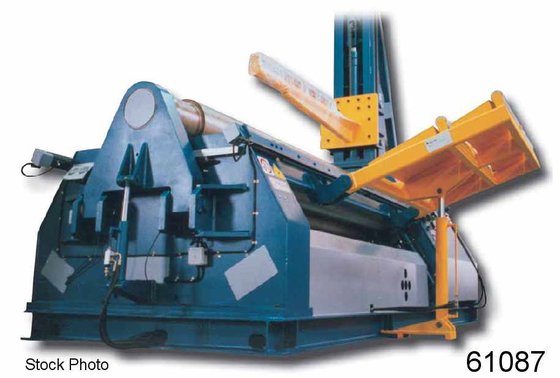

FACCIN (NEW) MODEL 4HEL 252 4 ROLL
SYNCHRONIZED PLATE BENDING ROLL
PLATE WIDTH ................ 100"
ROLLING 5 X DIAMETER ....... 0.31"
PREBEND 5 X DIAMETER ....... 0.25"
PREBEND 1.4 X DIAMETER ..... 0.125"
TOP ROLL MIMIMUM INCH ...... 8.3"
PINCH ROLL MINIMUM INCH .... 7.0"
SIDE ROLLS MIMIMUM INCH .... 6.3"
ROLLING POWER .............. 12.5 HP
STANDARD CONFIGURATION:
- LINEAR SLIDES FOR ROLL MOVEMENT (RGS)
- 4 BEARINGS SUPPORTING BENDING ROLLS (MCS)
- ULTRA-WIDE BEARING HOUSINGS (WHS)
- ELECTRONIC BALANCING SYSTEM (EPS)
- ROLLS SURFACE POLISHED
- HYDRAULICALLY TILTABLE TOP ROLL
- CONTROL CONSOLE MOVEABLE ON WHEELS
- PERMANENT LUBRICATION SYSTEM
- HYDRAULIC PROTECTION FROM OVERLOADS
- SAFETY GUARD CABLE AROUND THE MACHINE
- MACHINE CE CERTIFIED FOR ITS SAFETY
