FACCIN ROLLS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
FACCIN
Model:
HAV/S 3138 DBL PINCH
Capacity:
120" X 1.38

Specifications

Condition:
new
Stock number:
061137
Design:
VARIABLE
Diameter:
75.0
Drive system:
ENERGY
(full length):
1.10"
Tilting speed:
18 INS/1'
Rolls movement:
LINEAR
Rotation speed:
6-13' FT/1'
(energy saving):
40 HP
(full length) 2:
0.63"
Number of rolls:
3
Max plate length:
122.0"
Rolling capacity:
120" X 1.38
Top roll diameter:
15.00
Side rolls diameter:
13.8"
Material yield strength:
58000 PSI
Distance between uprights:
126.0"
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

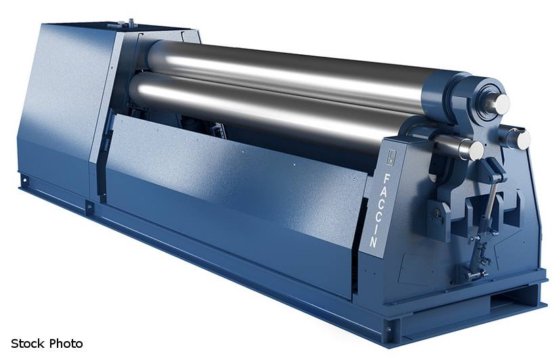

(NEW) FACCIN SYNCRO SERIES HAV/S 3138
3 ROLLS DOUBLE PINCH BENDING MACHINE,
MAIN TECH FEATURES:
NUMBER OF ROLLS,,,,,,,,,,,,,,,, 3
DESIGN,,,,,,,,,,,,,,,,,,,,,,,,, VARIABLE
AXIS
ROLLING CAPACITY,,,,,,,,,,,,,,, 120" X 1.38
TOP ROLL DIAMETER,,,,,,,,,,,,,, 15.00
SIDE ROLLS DIAMETER,,,,,,,,,,,, 13.8"
ROLLS MOVEMENT,,,,,,,,,,,,,,,,, LINEAR
DRIVE SYSTEM,,,,,,,,,,,,,,,,,,, ENERGY
SAVING
MAX PLATE LENGTH,,,,,,,,,,,,,,, 122.0"
DISTANCE BETWEEN UPRIGHTS,,,,,, 126.0"
GUARANTEED ROLLING POWER
(ENERGY SAVING),,,,,,,,,,,,,, 40 HP
ROTATION SPEED,,,,,,,,,,,,,,,,, 6-13' FT/1'
HYDRAULIC FRONT BEARING
TILTING SPEED,,,,,,,,,,,,,,,, 18 INS/1'
HYDRAULIC TILTING TOP ROLL,,,,, 10 INS/1'
GUARANTEED CAPACITIES:
MAX BENDING THICKNESS
(FULL LENGTH),,,,,,,,,,,,,,, 1.10"
MAX PREBENDING THICKNESS
(FULL LENGTH),,,,,,,,,,,,,, 0.63"
DIAMETER,,,,,,,,,,,,,,,,,,,,,,, 75.0
MATERIAL YIELD STRENGTH,,,,,,,, 58000 PSI
ACCESSORIES INCLUDED:
--DIGITAL READOUTS TO READ ROLLS POSITION
--ELECTRONIC CONICAL BENDING DEVICE FROM
MOBILE CONTROL CONSOLE
--ROLLS NORMALIZED, INDUCTION HARDENED AND
STRESS RELIEVED
--COMMISSIONING/TRAINING
STANDARD FEATURES ON FACCIN PLATE ROLLS
SERIES HAV/S:
--VARIABLE GEOMETRY (TOP ROLL MOVES
VERTICALLY AND LOWER HORIZONTALLY)
--LINEAR SLIDE SYSTEM FOR ROLLS TRANSLATION
(NO PIVETING MOVEMENT)
--ELECTRONIC PALALLELISM BALANCING CONTROL
(0.2 mm BALANCING TOLERANCE)
--HYDRAULIC DROP END BEARING
(IN COMBINATION WITH TOP ROLL TILTING)
--DROP END CAN BE OPENED AT ANY POSITION OF
TOP ROLL
--ROLLS SHAFTS GROUND AFTER HEAT TREATMENT
--HYDRAULIC PROTECTION AGAINST OVERLOADS
(LIMITED MAX WORKING PRESSURE)
--PERMANENT LUBRICATION (MAX RELIABILITY)
--ISO 9000 CERTIFIED COMPONENTS
