Top Seller
WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$51,805 USD
Manufacturer:
WALDEMAR
Model:
100-8-8 PINCH PYRAMI
Capacity:
5/16" X 8'

Specifications

Condition:
new
Stock number:
061863
Motor:
7.5 HP
Volts:
230/460 3 PHASE
Driven rolls:
3
Rated capacity:
5/16" X 8'
Nominal roll diameter:
8"
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

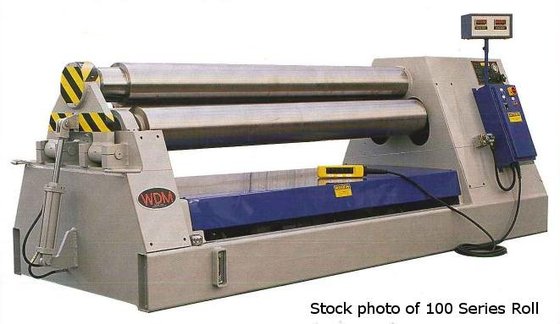

WALDEMAR (NEW) MODEL WDM 100-8-8 PINCH
PYRAMID PLATE ROLL
RATED CAPACITY ............ 5/16" X 8'
12 X TOP ROLL DIAMETER .... 3/8" X 8'
NOMINAL ROLL DIAMETER ..... 8"
DRIVEN ROLLS .............. 3
ROLL SPEED INF. VARIABLE .. 0-22 FPM
MOTOR ..................... 7.5 HP
VOLTS ..................... 230/460 3 PHASE
STANDARD FEATURES:
ROLLS ARE MACHINED TO AN RMS 125 FINISH
SPHERICAL ROLLER, TAPERED ROLLER AND BALL
BEARINGS
LOWER ROLLS ARE ACTUATED BY HYDRAULIC
CYLINDERS FOR PARALLEL MOVEMENT
CAN ROLL CHANNELS, LEG IN AND LEG OUT,
SQUARE AND RECTANGULAR TUBES, AND FLAT
BARS THE EASY WAY
HYDRAULIC CIRCUIT HAS SPECIAL CHECK VALVES
TO MAINTAIN POSITION
MAIN DRIVE MOTOR IS TOTALLY ENCLOSED & FAN
COOLED
MEETS NFPA 79 SPECIFICATIONS
SAFETY CABLE AROUND PERIMETER OF MACHINE
ALL CONTROLS AND BUTTONS ARE MOMENTARY
CONTACT (DEADMAN) TYPE
BAR & ANGLE ATTACHMENT ENABLES ROLLING FLAT
BAR THE HARD WAY & ANGLES & T-SECTIONS
LEG IN AND LEG OUT
MADE IN USA
1 YEAR WARRANTY
