Top Seller
WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$57,400 USD
Manufacturer:
WALDEMAR
Model:
403-8-8 PLATE ROLL
Capacity:
1/4" X 8'

Specifications

Condition:
new
Stock number:
061824
Volts:
230/460
Roll speed:
0-22 FPM
Tefc motor:
7.5 HP, 3 PHASE
Rated capacity:
1/4" X 8'
Options available:
PRICE ON REQUEST
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

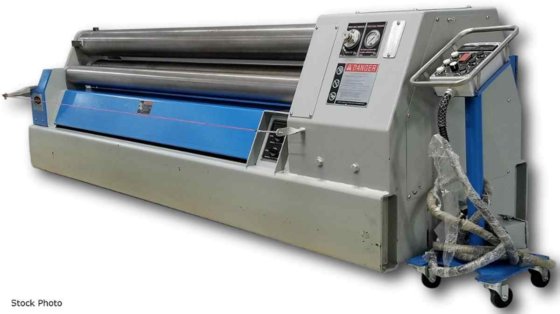

WALDEMAR (NEW) MODEL 408-8-8 4-ROLL DOUBLE
PINCH PLATE BENDING MACHINE
RATED CAPACITY ........... 1/4" X 8'
NOMINAL TOP ROLL DIAMETER. 8"
ROLL SPEED ............... 0-22 FPM
TEFC MOTOR ............... 7.5 HP, 3 PHASE
VOLTS .................... 230/460
STANDARD FEATURES
1045 STEEL ROLLS
TOTAL HYDRAULIC OPERATION
INSTANT START, STOP AND REVERSE
2 ROLL DRIVE
24V-120 AC CONTROL CIRCUIT
SAFETY/EMERGENCY STOP CABLE ON 3 SIDES
QUIET HYDRAULIC SYSTEM
ELECTRICS MEET NFPA 79 SPECIFICATIONS
OVERLOAD PROTECTION
SEALED SPHERICAL ROLLER BEARINGS
HYDRAULICALLY ACTUATED DROP END
OPTIONS AVAILABLE .......... PRICE ON REQUEST
CONE ATTACHMENTS................ POR
HARDENED AND POLISHED ROLLS .... POR
SQUARING GROOVES IN LOWER ROLLS. POR
CIRCULAR GROOVES ............... POR
FORWARD & REVERSE FOOT PEDAL ... POR
SIDE SUPPORTS .................. POR
OVERHEAD SUPPORTS .............. POR
EJECTORS ....................... POR
DRO FOR ROLL POSITION .......... POR
