Top Seller
WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$137,924 USD
Manufacturer:
Continental
Model:
403-13-10 HYD DBL PN
Capacity:
19/32" X 52" X 10'

Specifications

Condition:
new
Stock number:
061765
Following:
SKF, TORRINGTON, CONTINENTAL,
Tefc motor:
25 HP, 3 PHASE, 230/460 VOLT
Options available:
PRICE ON REQUEST
Capacity mild steel:
19/32" X 52" X 10'
Nominal top roll dia:
13"
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

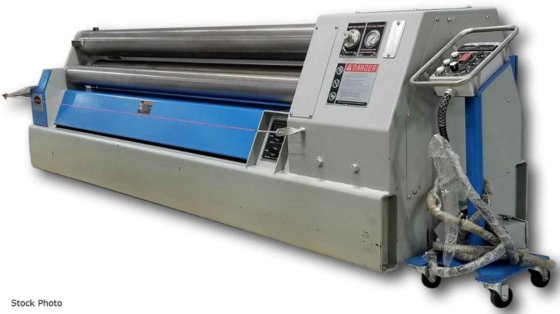

WALDEMAR (NEW) MODEL 403-13-10 HYDRAULIC
DOUBLE PINCH PLATE BENDING MACHINE
CAPACITY MILD STEEL ...... 19/32" X 52" X 10'
NOMINAL TOP ROLL DIA ..... 13"
TEFC MOTOR ..... 25 HP, 3 PHASE, 230/460 VOLT
STANDARD FEATURES:
-1045 CARBON ROLLS
-HYDRAULIC DRIVEN ROLLS WHICH PROVIDE INSTANT
START, STOP AND REVERSE
-NEMA 12 CONTROL CABINET WITH FUSIBLE
DISCONNECT AND FUSE CONTROL TRANSFORMER
-ELECTRICS MEET NFPA 79 SPECIFICATIONS
-THERMAL OVERLOAD PROTECTION
-TWO ROLL DRIVE
-SPHERICAL ROLLER BEARINGS ON ALL MAIN
BEARINGS
-LSHT TYPE HYDRAULIC DRIVE MOTOR WITH HIGH
VOLUMETRIC AND OVERALL EFFICIENCY
-INFINATELY VARIABLE SPEED FROM 0 - 22 FPM
-SAFETY CABLE AROUND PERIMETER OF MACHINE
-MACHINE IS CONTROLLED BY HYDRAULIC
DIRECTIONAL VALVES LOCATED ON MACHINE
DRIVE HOUSING
-ROLLS DRIVEN THROUGH PLANETARY TYPE SPEED
REDUCERS
-DIAL/POINTER TYPE INDICATORS TO SHOW ROLL
POSITION
-MACHINE SETS DIRECTLY ON LEVEL FLOOR
-ABILITY TO ROLL SYMMETRICAL STEEL SECTIONS
WITHOUT ADDITIONAL ATTACHMENTS
-HYDRAULIC OPERATED DROP END SUPPORT
-COMPONENT SUPPLIERS INCLUDE SOME OR ALL OF
FOLLOWING: SKF, TORRINGTON, CONTINENTAL,
AUBURN, WHITE, TORQUE HUB, TELEMECHANIQUE,
MODULAR CONTROLS, HOFFMAN, RED LION,
MORSE, HYDRA, NTN, WRG GEARS, PRINCE,
BROWNING, HYDRAFORCE, DOUBLE A
ONE YEAR FACTORY WARRANTY ON PARTS
OPTIONS AVAILABLE .......... PRICE ON REQUEST
CONE ATTACHMENT ................ POR
HEAVY-DUTY CONE ATTACHMENT ..... POR
HARDENED ROLLS ................. POR
HARDENED AND POLISHED ROLLS .... POR
CIRCULAR GROOVES ............... POR
STARTING GROOVES ............... POR
SIDE SUPPORTS .................. POR
OVERHEAD SUPPORTS .............. POR
