WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$45,087 USD
Manufacturer:
WALDEMAR
Model:
403-8-4
Capacity:
1/2" X 4'

Specifications

Condition:
new
Stock number:
061757
Hp:
7.5
Phase:
3
Volts:
230/460
Rated capacity:
1/2" X 4'
Options available:
PRICE ON REQUEST
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

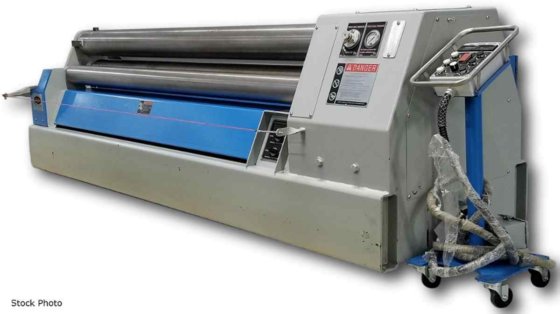

WALDEMAR (NEW) MODEL 403-8-4 HYDRAULIC DOUBLE
PINCH PYRAMID PLATE ROLL
RATED CAPACITY .............. 1/2" X 4'
NOMINAL TOP ROLL DIAMETER ... 8
HP .......................... 7.5
PHASE ....................... 3
VOLTS ....................... 230/460
STANDARD FEATURES:
-1045 STEEL ROLLS MACHINED TO 63 MICRO INCHES
-TOTAL HYDRAULIC OPERATION
-INSTANT START-STOP-REVERSE
-ELECTRICS MEET NFPA 79-SPECIFICATIONS
-24V-120 AC CONTROL CIRCUIT
-OVERLOAD PROTECTED
-2 ROLL DRIVE
-SEALED SPHERICAL ROLLER BEARINGS ON ALL MAIN
POINTS
-TEFC MAIN MOTOR
-QUIET HYDRAULIC SYSTEM
-INFINITELY VARIABLE SPEED FROM 0 TO 22 FPM
-SAFETY/EMERGENCY STOP CABLE ON 3 SIDES
-HYDRAULICALLY ACTUATED DROP END
OPTIONS AVAILABLE .......... PRICE ON REQUEST
CONE ATTACHMENT ................ POR
HEAVY-DUTY CONE ATTACHMENT ..... POR
HARDENED ROLLS ................. POR
HARDENED AND POLISHED ROLLS .... POR
CIRCULAR GROOVES ............... POR
STARTING GROOVES ............... POR
SIDE SUPPORTS .................. POR
OVERHEAD SUPPORTS .............. POR
