Top Seller
ERCOLINA ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$19,900 USD
Manufacturer:
Ercolina
Model:
CE50H3 ANGLE ROLL
Capacity:
2-1/2" SCH. 40

Specifications

Condition:
new
Stock number:
061701
Programming:
NC - TOUCHPAD
Shaft speed:
9 RPM
Control tower:
YES
Pipe capacity:
2-1/2" SCH. 40
Angle capacity:
2-1/2" X 2-1/2" X 1/4"
Operating voltage:
220/440 V 3 PH
Options available:
PRICE ON REQUEST
Number of programs:
8
Operating position:
HORIZ. OR VERT.
Roll shaft diameter:
50 MM
Center roll positioning:
HYD. 12 TONS
Distance between shafts:
11-7/8"
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

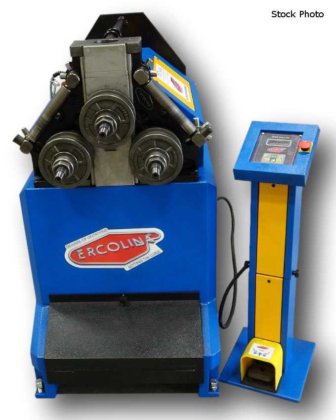

ERCOLINA (NEW) MODEL CE50H3 ANGLE ROLL
ROLL SHAFT DIAMETER ......... 50 MM
CENTER ROLL POSITIONING ..... HYD. 12 TONS
PIPE CAPACITY ............... 2-1/2" SCH. 40
ANGLE CAPACITY ....... 2-1/2" X 2-1/2" X 1/4"
UNIVERSAL TOOLING INCLUDED .. 7" OUTSIDE DIA.
PROGRAMMING ................. NC - TOUCHPAD
NUMBER OF PROGRAMS .......... 8
SHAFT SPEED ................. 9 RPM
DISTANCE BETWEEN SHAFTS ..... 11-7/8"
DRIVE MOTOR (INTO PLANETARY) 2-1/2 HP
OPERATING POSITION .......... HORIZ. OR VERT.
CONTROL TOWER ............... YES
OPERATING VOLTAGE ........... 220/440 V 3 PH
FEATURES:
- BENDING SPEEDS 20% FASTER THAN COMPETITIVE
MACHINES
- UNIVERSAL TOOLING SET
- FORGED ROLL SHAFTS PRECISION GROUND AND
FITTED FOR MAXIMUM PERFORMANCE AND MINIMAL
DEFLECTION
- HEAVY DUTY STRUCTURE AND RIGID COMPONENTS
FOR HIGH SECTION MODULUS RATINGS
- REINFORCED ENGINEERED MAINFRAME DESIGN
PROVEN TO OUTPERFORM COMPETITIVE MODELS
- PATENTED BY ERCOLINA SIMULTANEOUS DOWNFEED
AND ROLL MOVEMENT TO MINIMIZE DEFORMATION
- PROGRAMMABLE TOUCH PAD CONTROLS WITH
DIGITAL CENTER ROLL POSITIONING DISPLAY
- HYDRAULIC MACHINE WITH MEMORY STORAGE WITH
WITH 8 INDIVIDUAL PROGRAMS
- REMOTE PENDENT WITH LOW VOLTAGE CONTROLS
AND FOOT PEDAL SWITCH
- THREADED ROLL SHAFTS WITH MICROMETRIC
FLANGE ADJUSTMENT HELPS ELIMINATE SPACER
USAGE
- INLINE DIRECT DRIVE ROLL SHAFT SYSTEM
- 1 YEAR LIMITED WARRANTY
OPTIONS AVAILABLE .......... PRICE ON REQUEST
ANTI-TWIST CORRECTION SYSTEM FOR
ANGLE IRON "LEG IN" APPLICATIONS . POR
